Passenger Power Seat Switch Connector End View

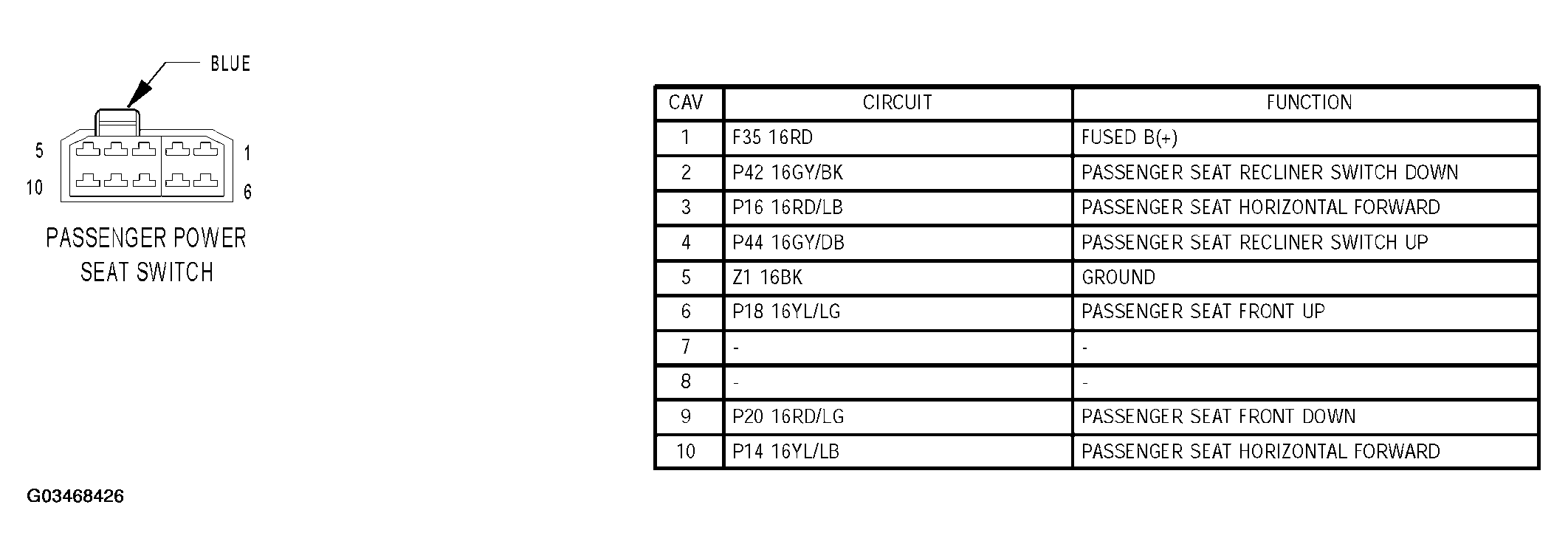

Fig 1: Passenger Power Seat Switch Connector End View

G03468426

Courtesy of CHRYSLER GROUP, LLC
