Passenger Power Door Lock Switch Connector End View

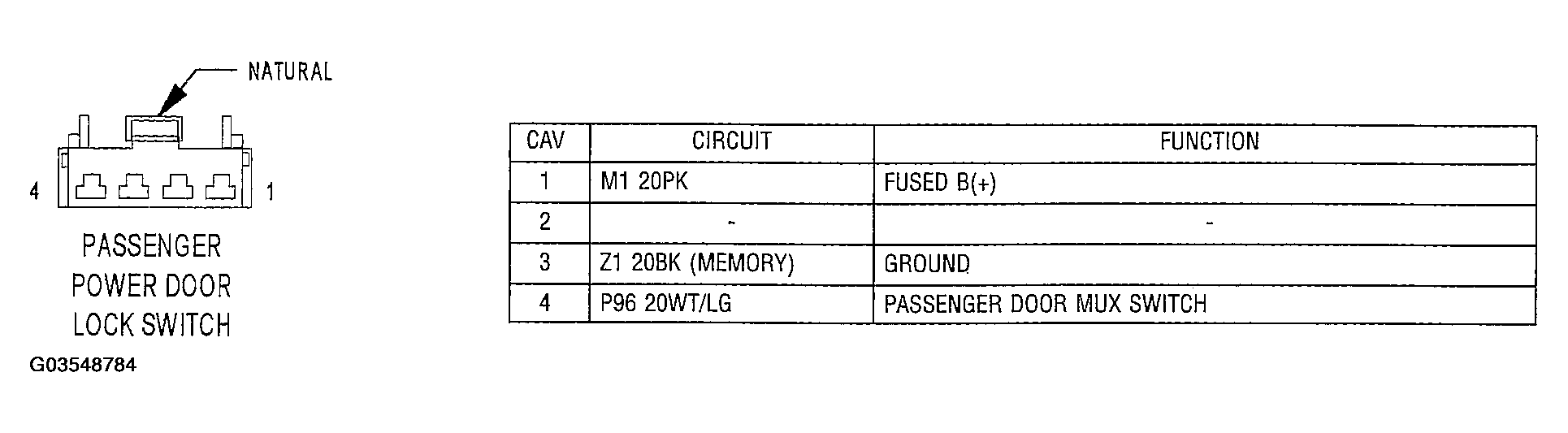

Fig 1: Passenger Power Door Lock Switch

G03548784

Courtesy of CHRYSLER GROUP, LLC
