Overhead Map/Courtesy Lamp Connector End View

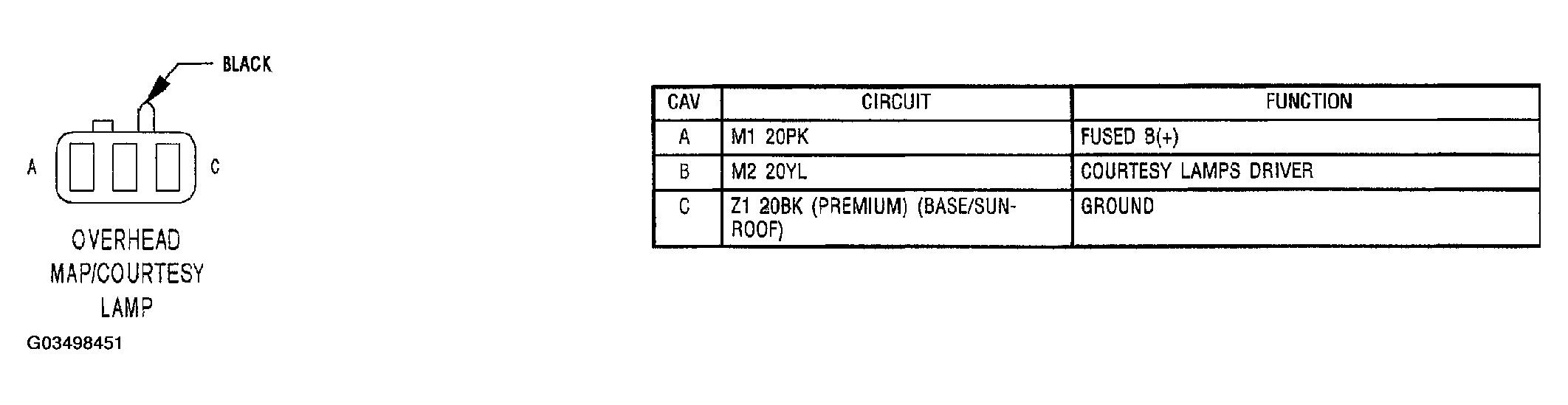

Fig 1: Overhead Map/Courtesy Lamp Connector End View

G03498451

Courtesy of CHRYSLER GROUP, LLC
