Junction Block Connector End View (C9)

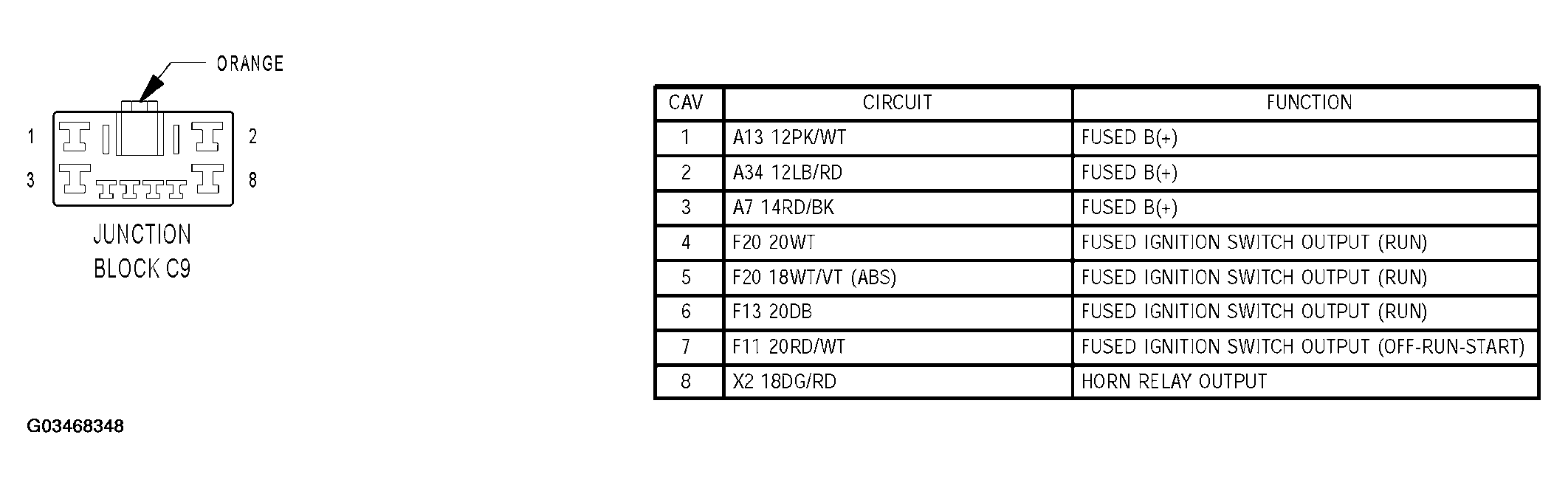

Fig 1: Junction Block Connector End View (C9)

G03468348

Courtesy of CHRYSLER GROUP, LLC
