Junction Block Connector End View (C6)

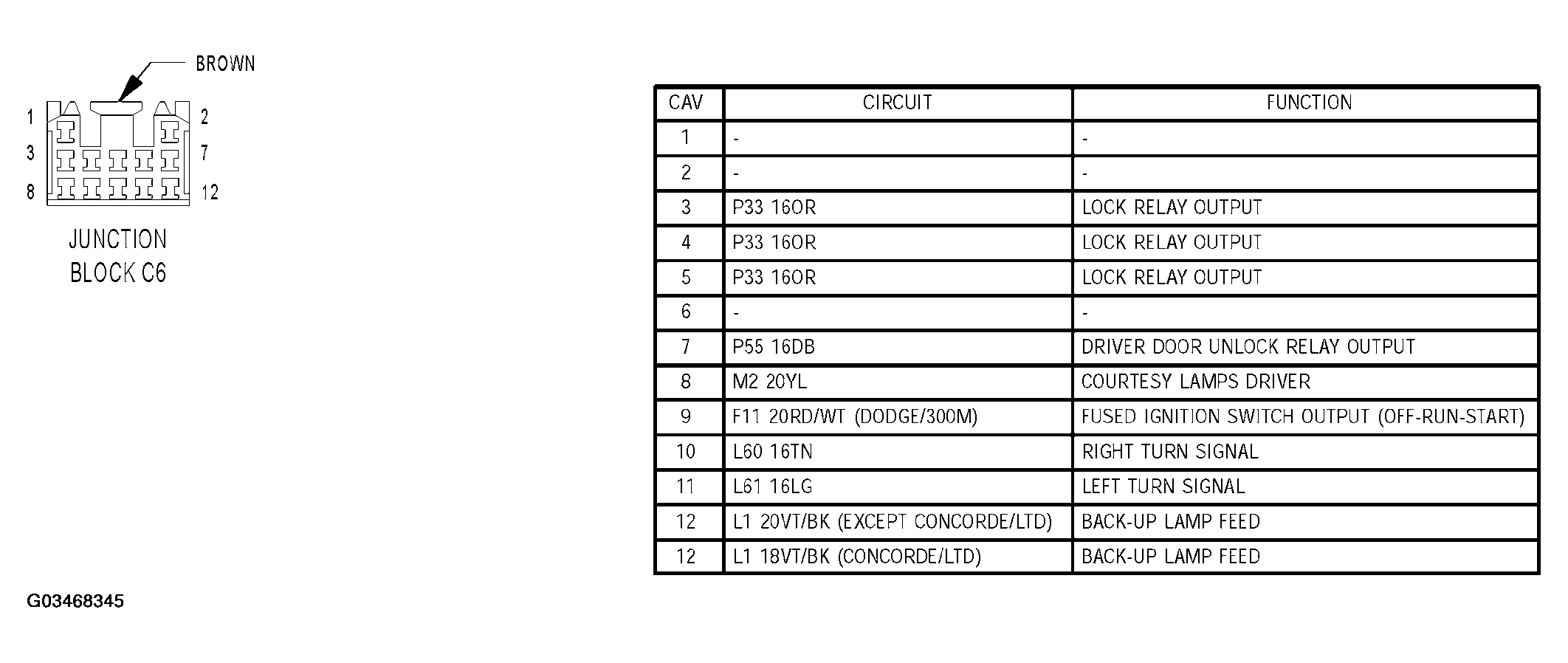

Fig 1: Junction Block Connector End View (C6)

G03468345

Courtesy of CHRYSLER GROUP, LLC
