Junction Block Connector End View (C4)

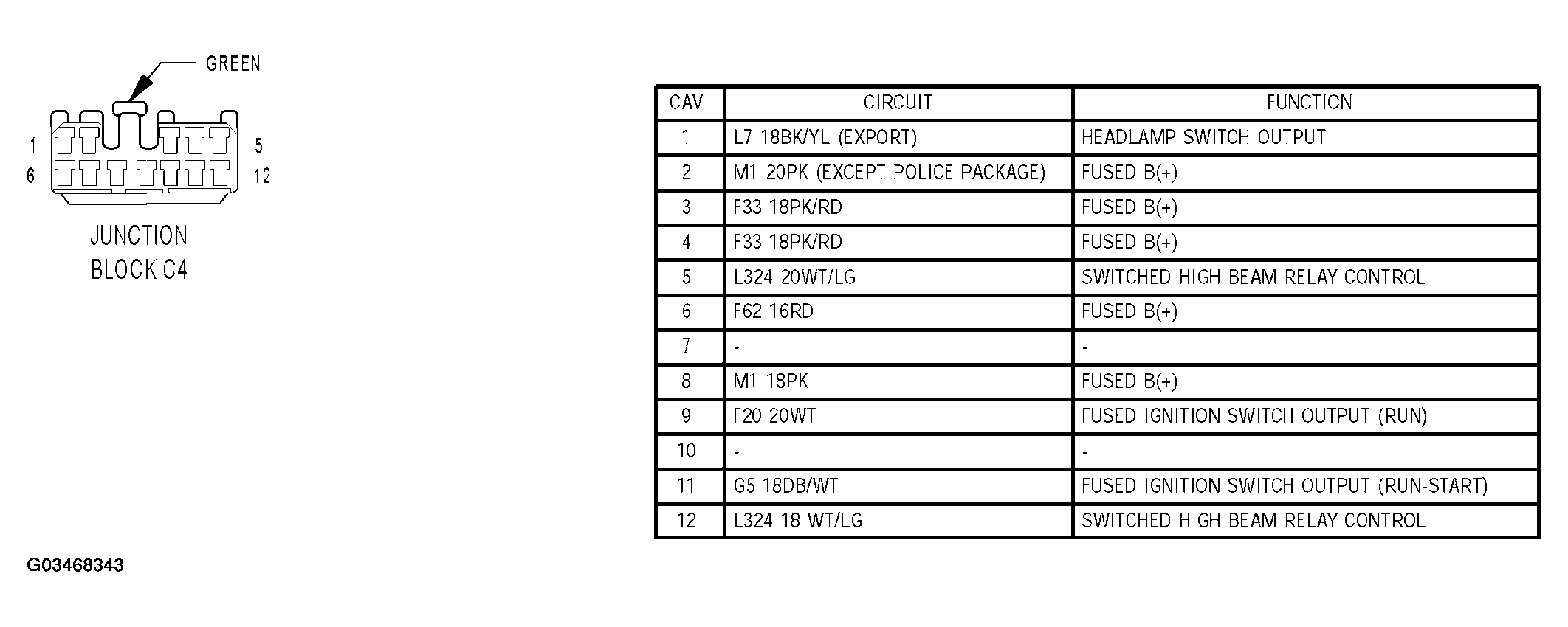

Fig 1: Junction Block Connector End View (C4)

G03468343

Courtesy of CHRYSLER GROUP, LLC
