Junction Block Connector End View (C10)

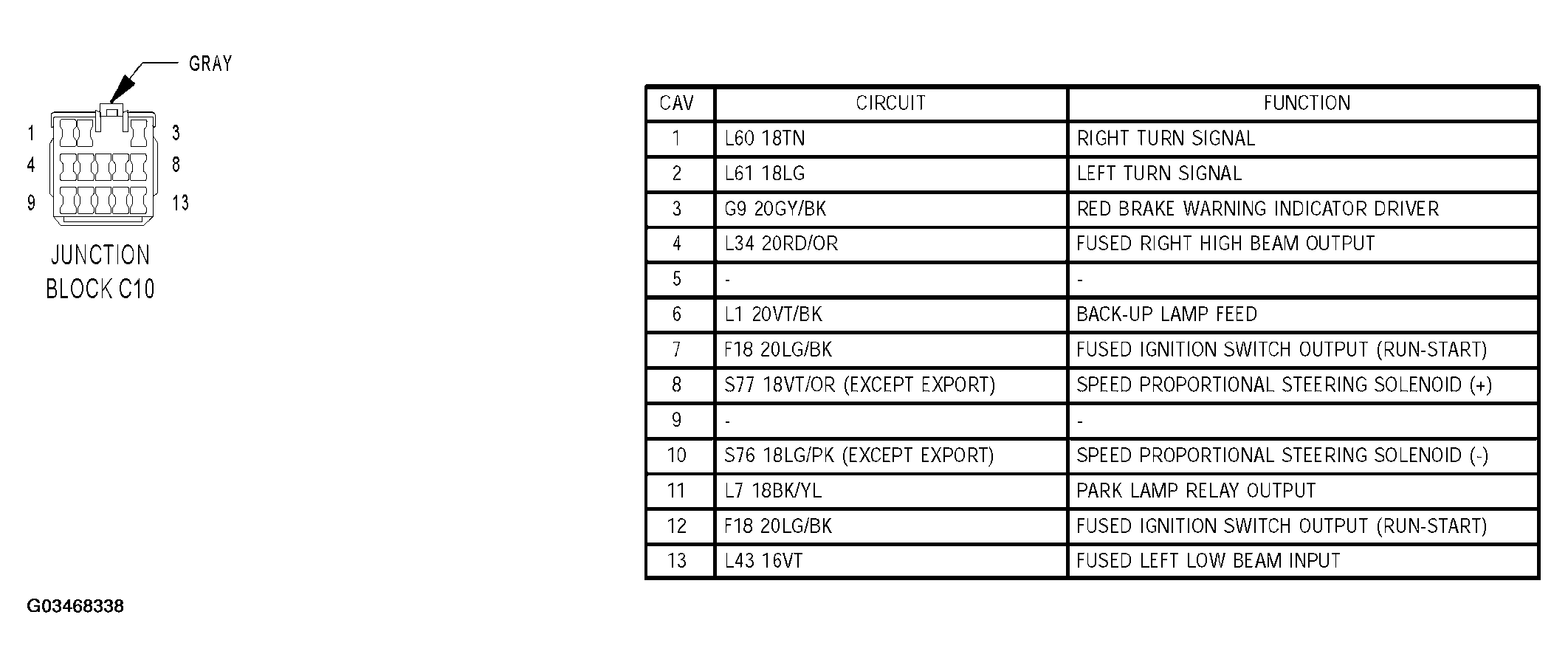

Fig 1: Junction Block Connector End View (C10)

G03468338

Courtesy of CHRYSLER GROUP, LLC
