Junction Block C2 Connector End View

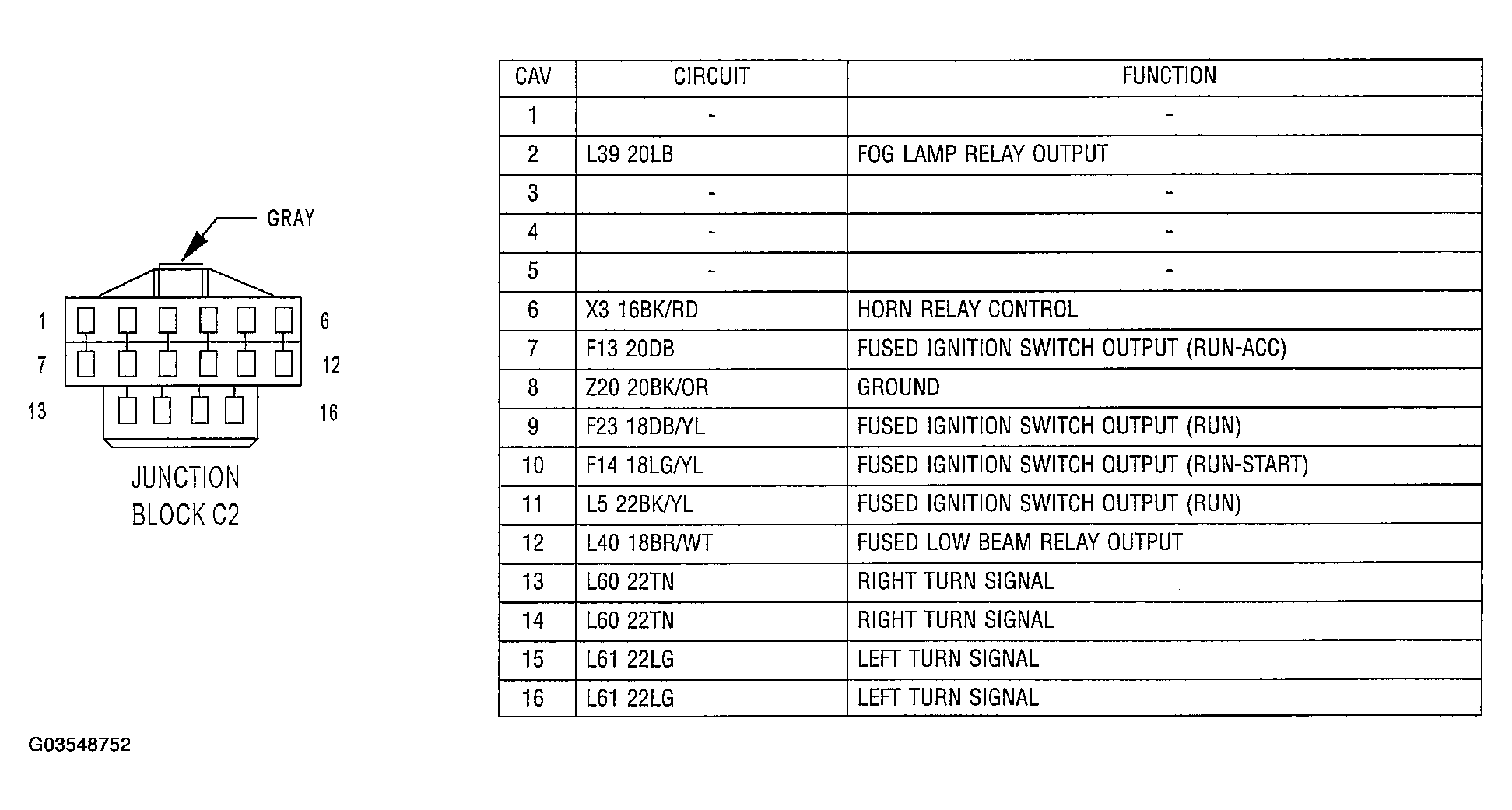

Fig 1: Junction Block C2

G03548752

Courtesy of CHRYSLER GROUP, LLC
