Junction Block C11 Connector End View

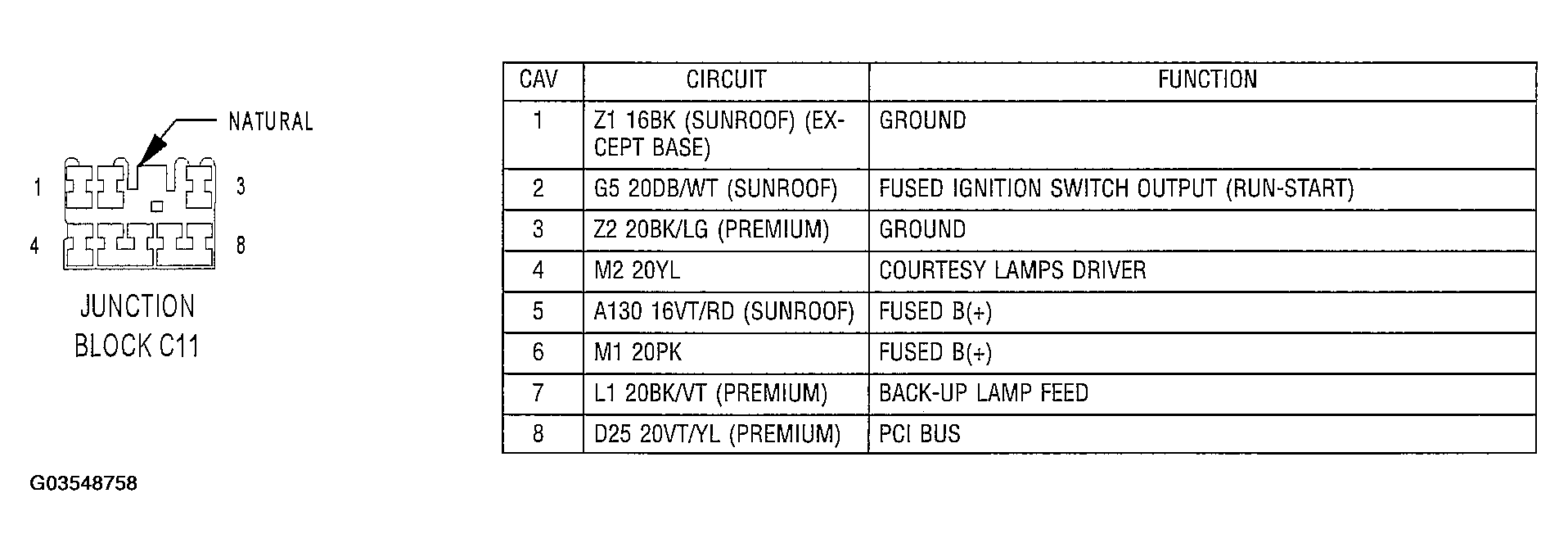

Fig 1: Junction Block C11

G03548758

Courtesy of CHRYSLER GROUP, LLC
