Instrument Cluster C2 Connector End View

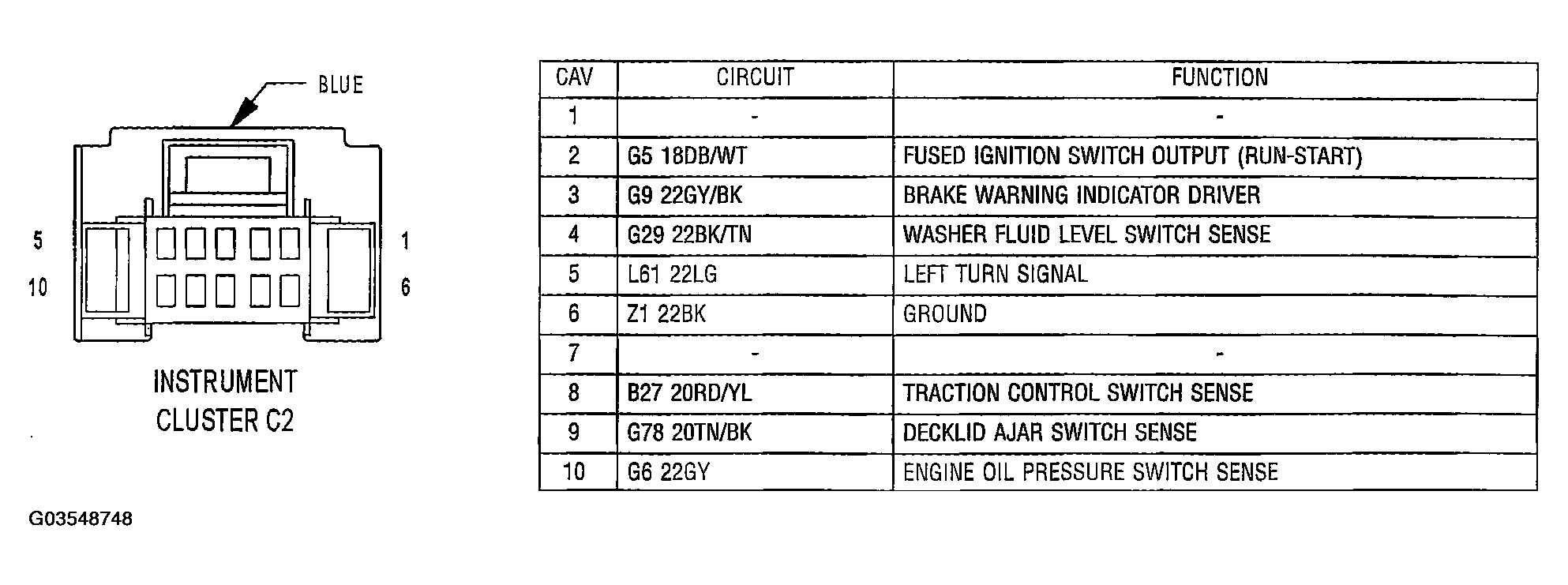

Fig 1: Instrument Cluster C2

G03548748

Courtesy of CHRYSLER GROUP, LLC
