Driver Heated Seat Switch Connector End View

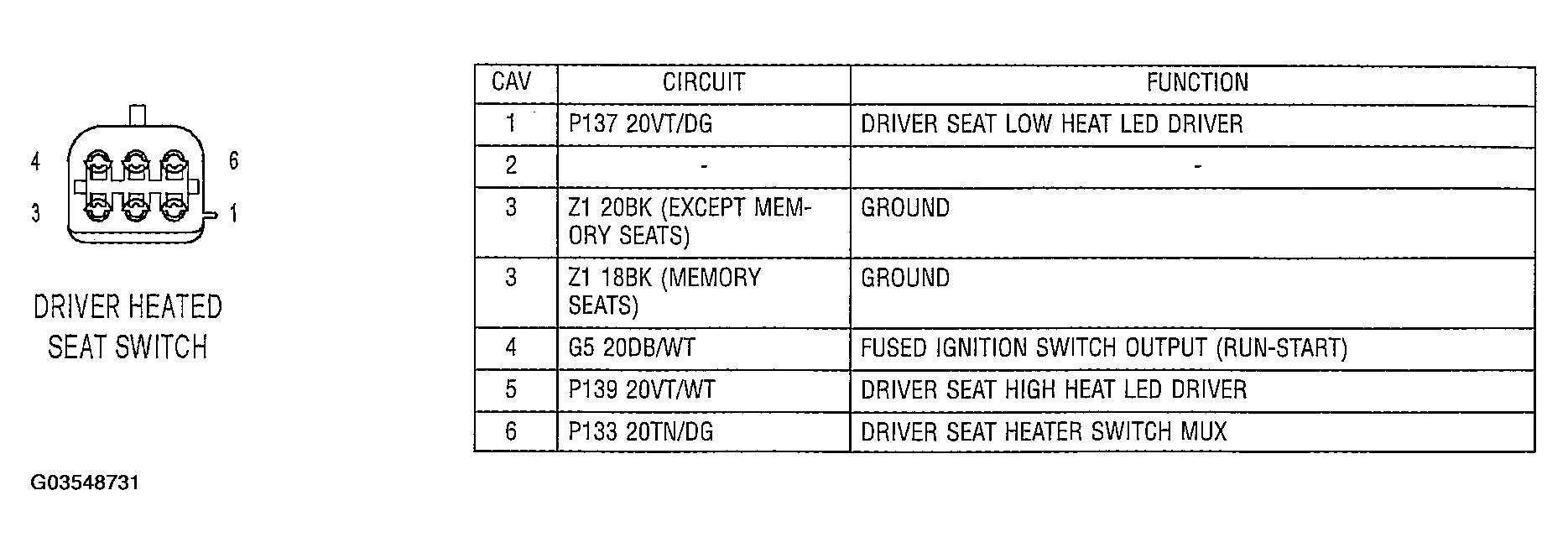

Fig 1: Driver Heated Seat Switch

G03548731

Courtesy of CHRYSLER GROUP, LLC
