Decklid Release Switch Connector End View

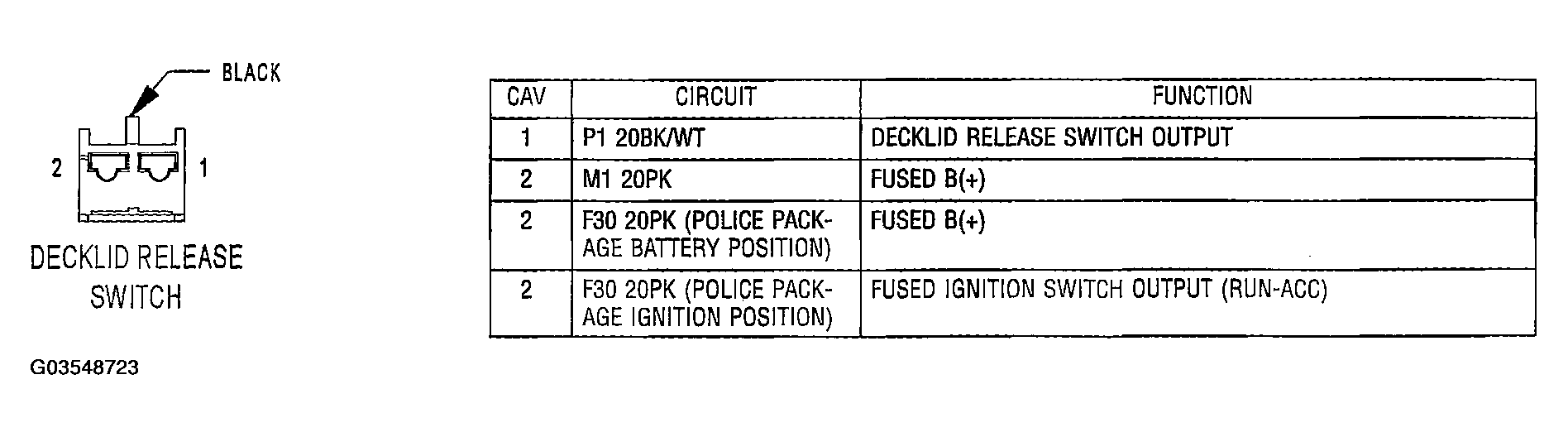

Fig 1: Decklid Release Switch

G03548723

Courtesy of CHRYSLER GROUP, LLC
