C202 (MTC) Connector End View
C202 (MTC) Connector End View

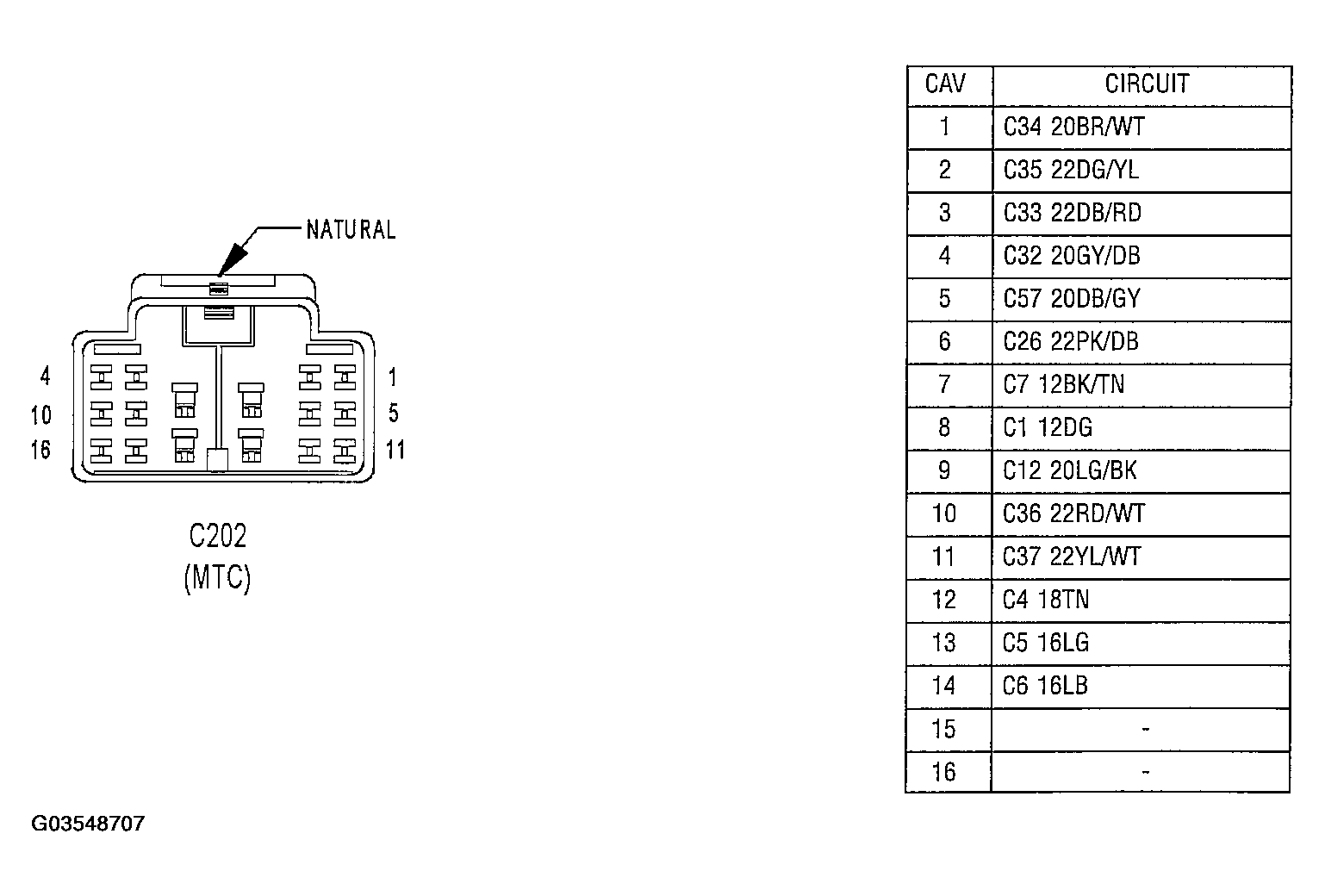

Fig 1: C202 (MTC)
Courtesy of CHRYSLER GROUP, LLC

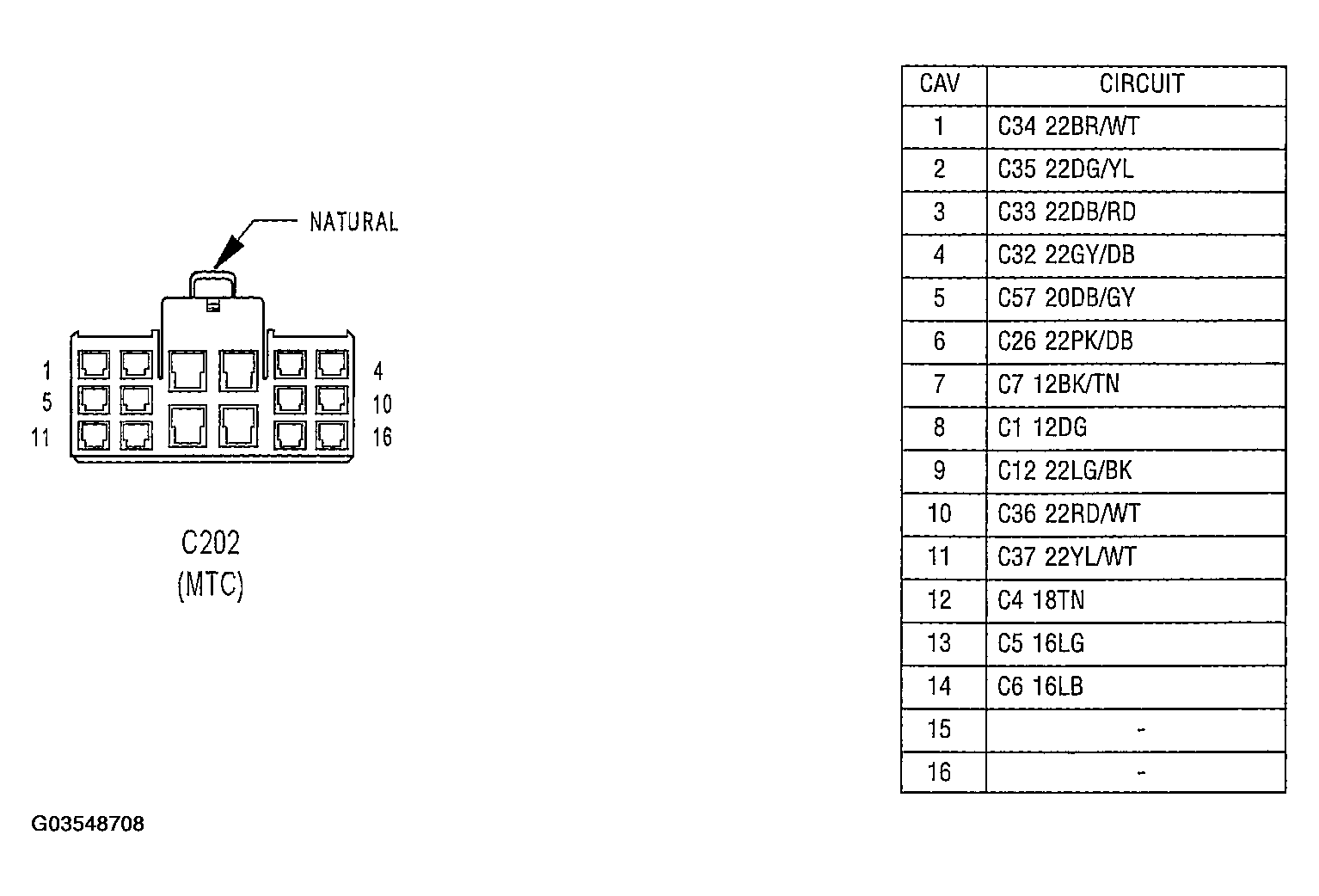

Fig 1: C202 (MTC)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
