Blower Motor Resistor Block Connector End View

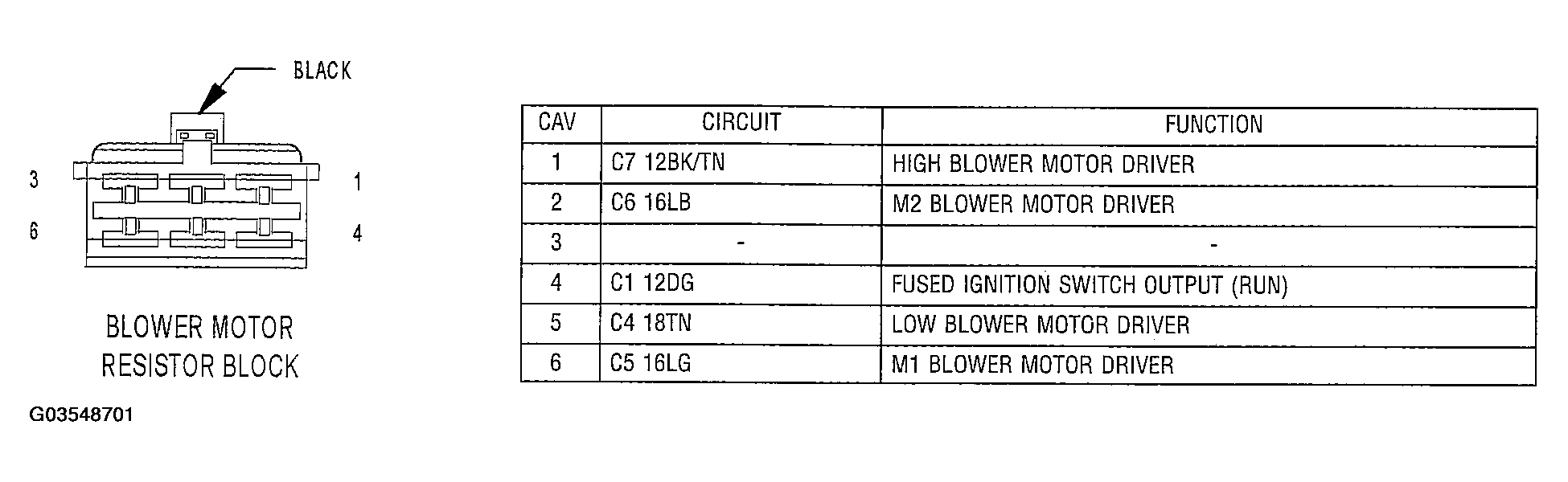

Fig 1: Blower Motor Resistor Block

G03548701

Courtesy of CHRYSLER GROUP, LLC
