A/C Pressure Transducer Connector End View

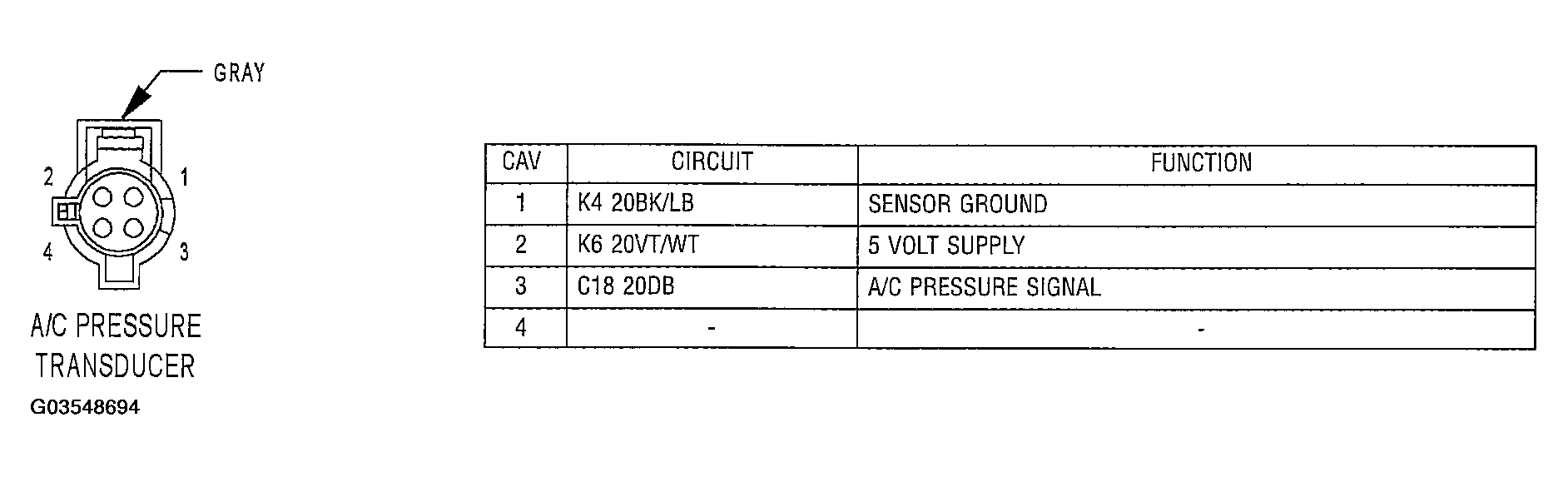

Fig 1: A/C Pressure Transducer

G03548694

Courtesy of CHRYSLER GROUP, LLC
