A/C Compressor Clutch Connector End View

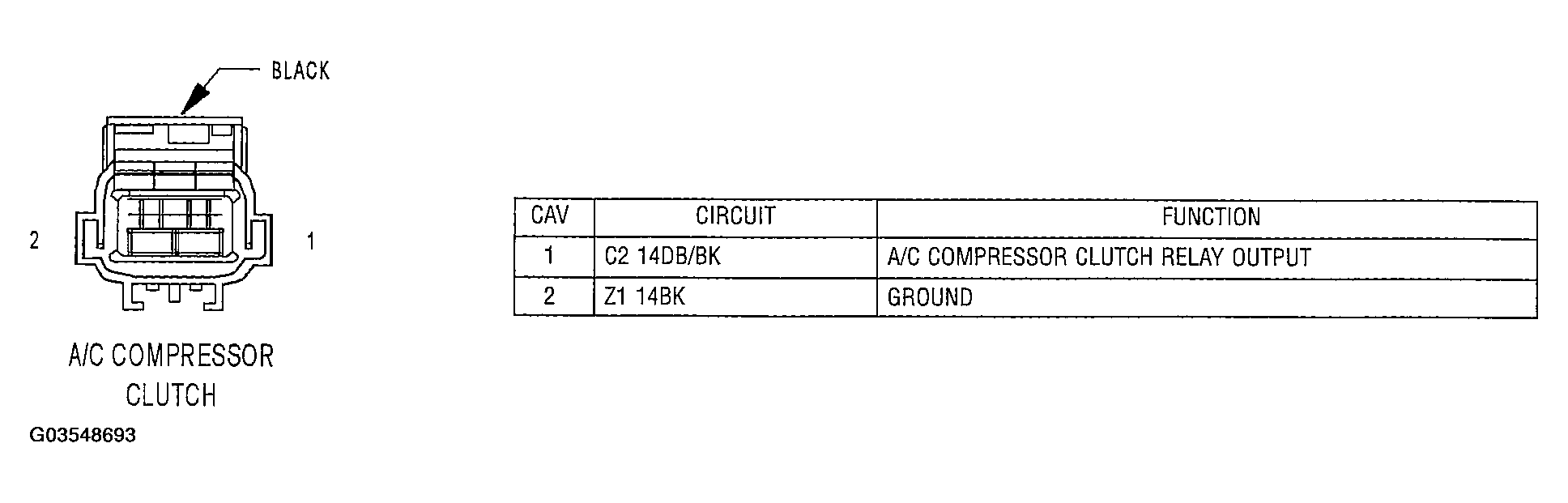

Fig 1: A/C Compressor Clutch

G03548693

Courtesy of CHRYSLER GROUP, LLC
