Lower Quarter Trim: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear seat cushion and back.
  2. Pull upper quarter trim from panel (Fig 1 ).
  3. Remove sill trim as necessary to clear quarter trim removal path.
  4. Disengage clips attaching lower quarter trim to inner quarter trim from vehicle.
  5. Remove quarter trim from vehicle.

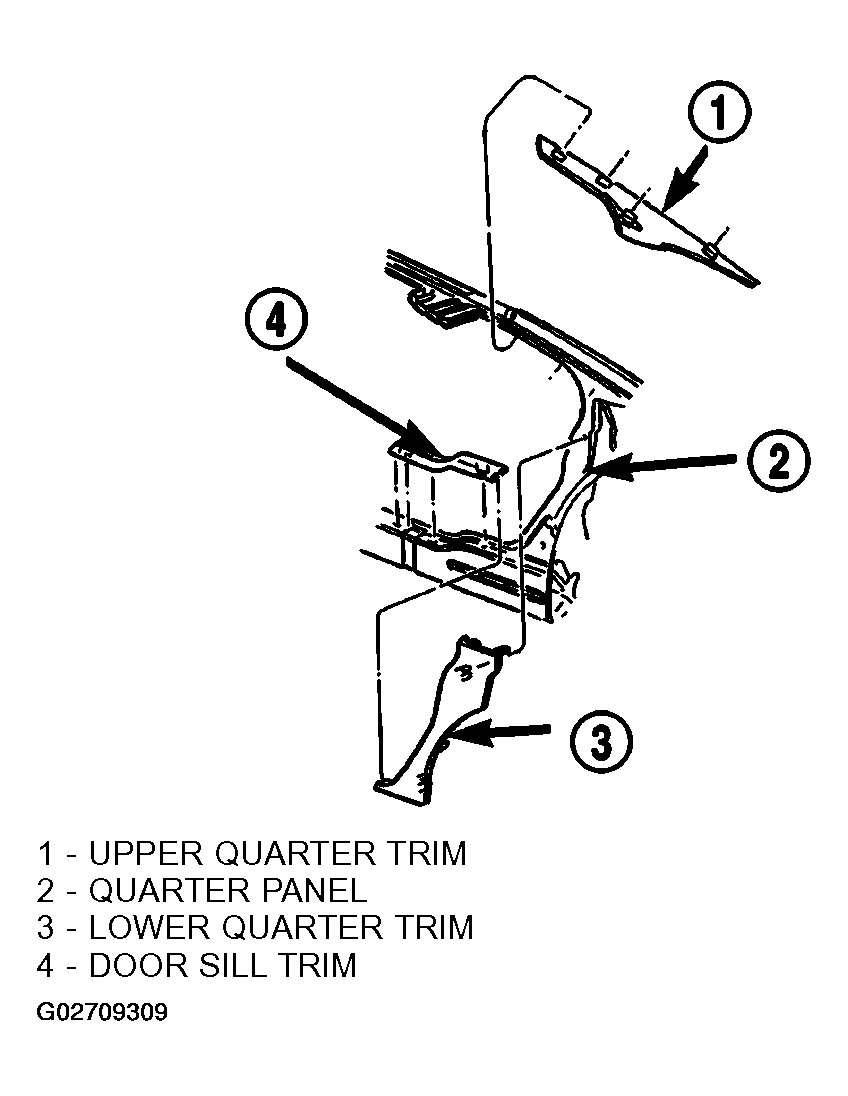

    Fig 1: Removing Lower Quarter Trim
    G02709309Courtesy of DAIMLERCHRYSLER CORP.
