Front Door Window Frame Molding: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove flag trim, speaker, door trim panel, watershield as necessary, and mirror.
  2. Remove door glass run weatherstrip as necessary to gain access to applique fasteners.
  3. Remove screws attaching molding to window frame (Fig 1 ).
  4. Remove molding from door.

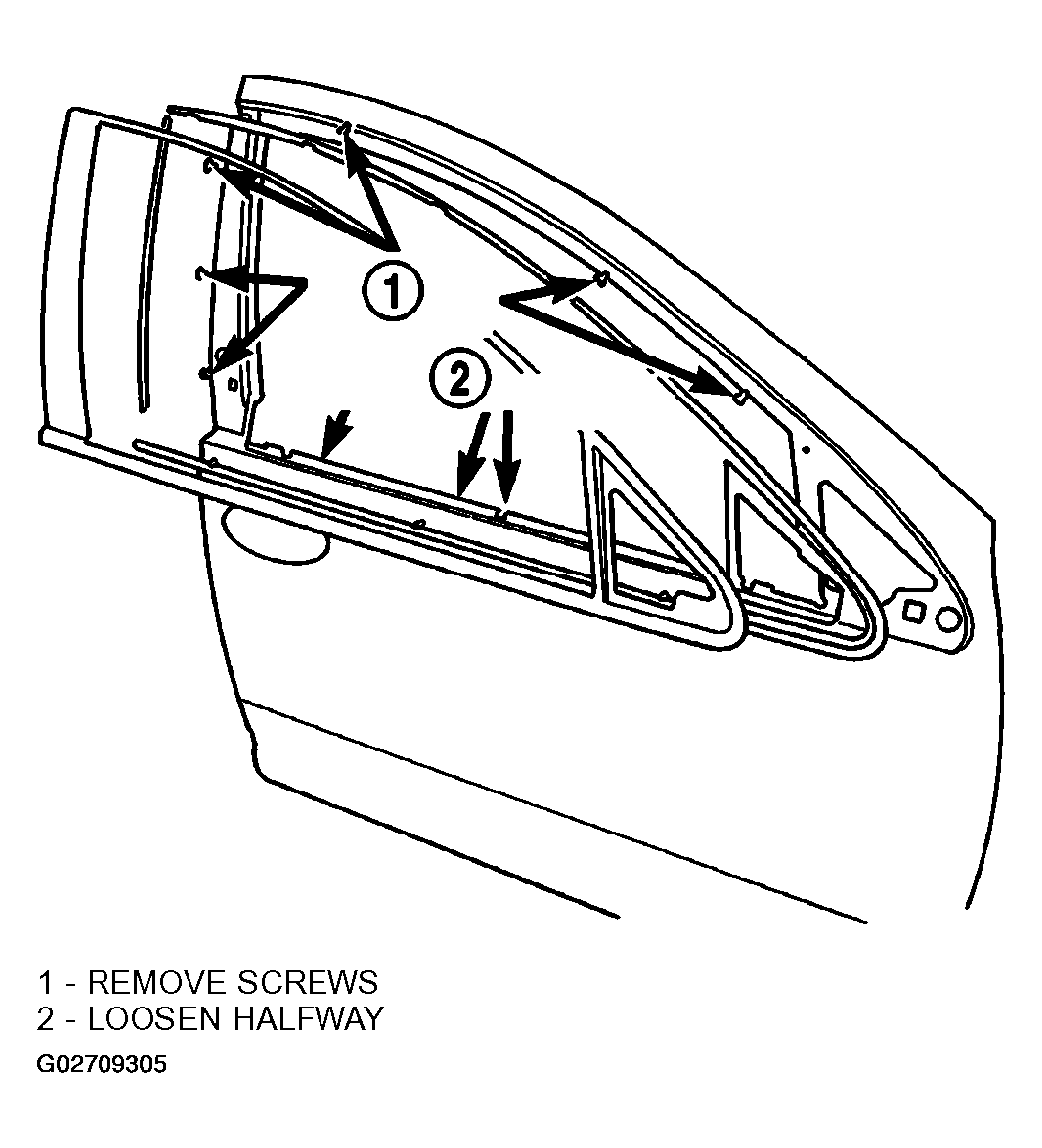

    Fig 1: Removing/Installing Front Door Frame Window
    G02709305Courtesy of DAIMLERCHRYSLER CORP.
