Body Vent: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open decklid.
  2. Move trunk carpet to access the air exhauster in the right/left rear corner of the trunk (Fig 1 ).
  3. From inside trunk push the air exhauster outward to release clips.
  4. Reach under fascia and pull air exhauster outward from trunk side panel.
  5. Remove air exhauster from vehicle.

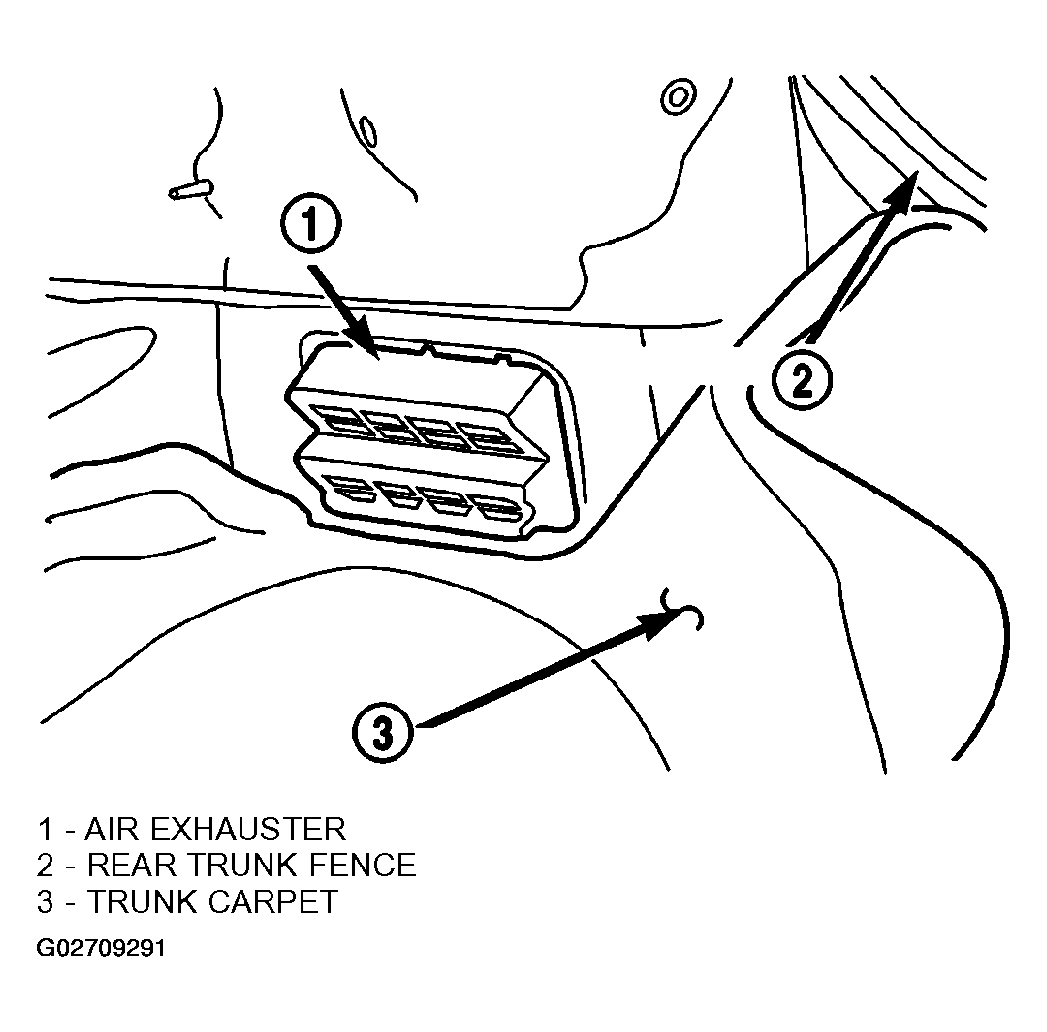

    Fig 1: Removing Air Exhauster
    G02709291Courtesy of DAIMLERCHRYSLER CORP.
