Description - Engine Cooling System
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

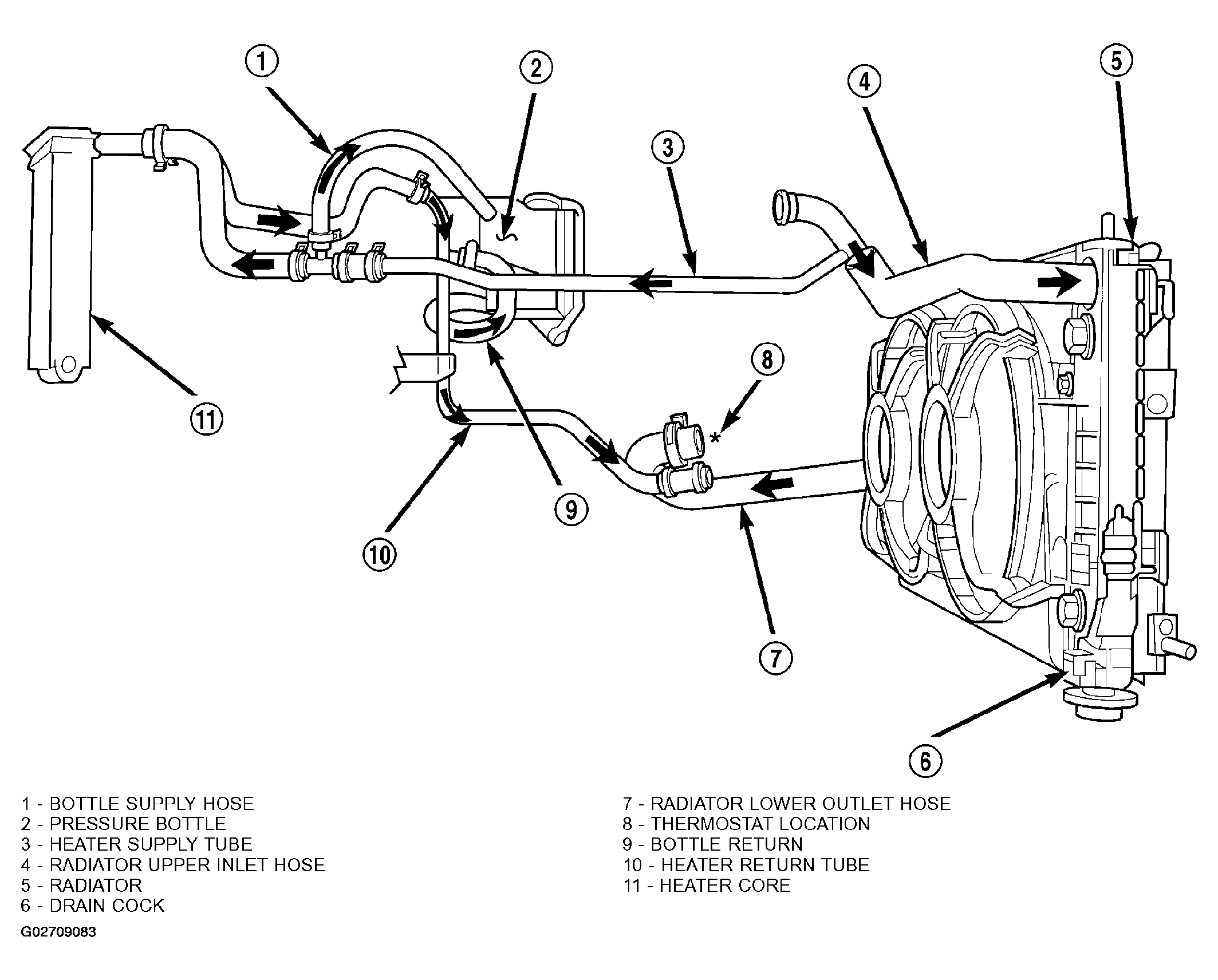

The engine cooling system consists of a cooling module, pressure cap, coolant bottle, thermostat (inlet type), coolant, plumbing, and a water pump to circulate the coolant (Figure). The engine cooling module consist of a radiator, electric radiator fan motors, shroud, internal transmission oil cooler, internal engine oil cooler (if equipped), air conditioning condenser, and a auxiliary transmission oil cooler (if equipped).
