Sun Visor: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air-bag warning label applied to the sun visor, verify label availability and ensure the label is installed.

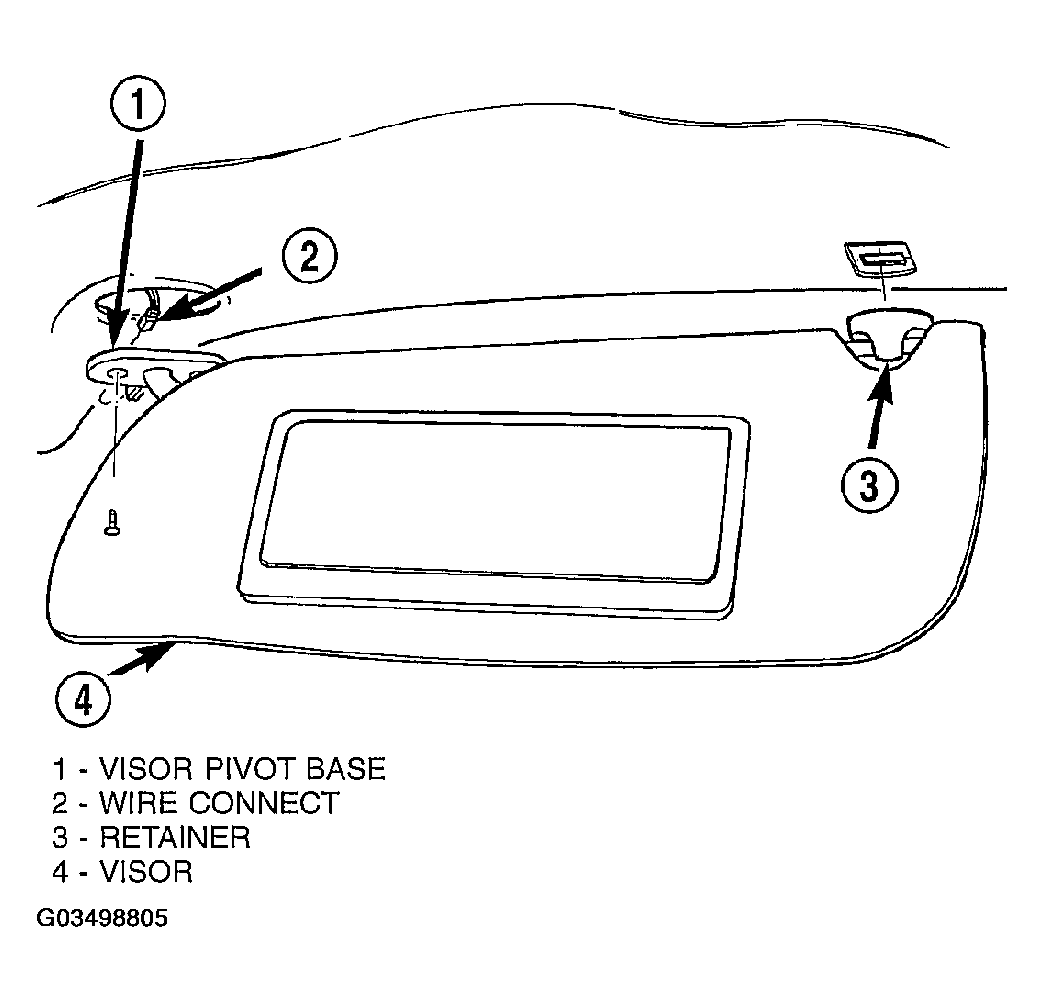

- Remove screw attaching inboard visor retainer to over head. (Fig 1 ).
- Remove screws attaching outboard visor pivot base to roof.
- Disconnect visor vanity lamp wire connector, if equipped.
- Remove visor from vehicle.
