Rear View Mirror: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, disconnect mirror harness connector.
  2. Loosen the mirror base setscrew (Fig 1 ).

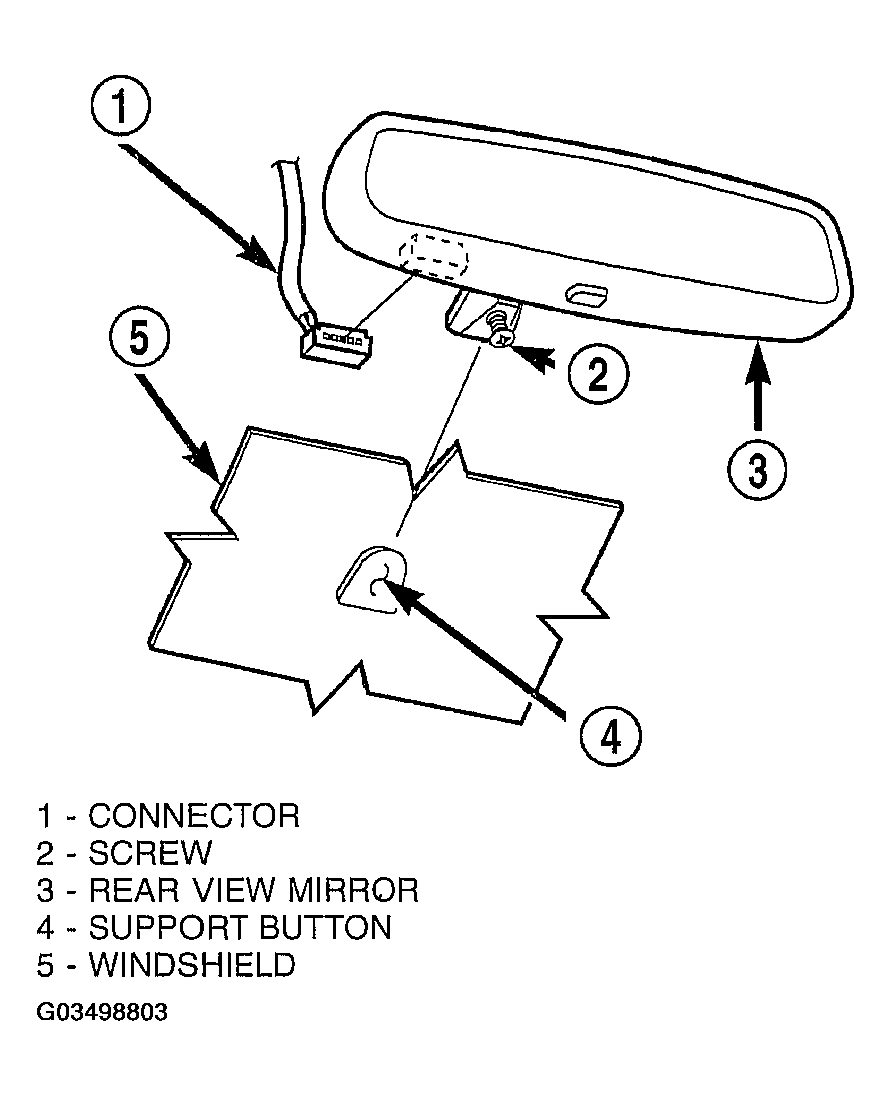

    Fig 1: Removing Rear View Mirror
    G03498803Courtesy of DAIMLERCHRYSLER CORP.
  3. Slide the mirror base upward and off the bracket.
