Lower Quarter Trim: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear seat cushion and back.
  2. Pull upper quarter trim from panel (Fig 1 ).

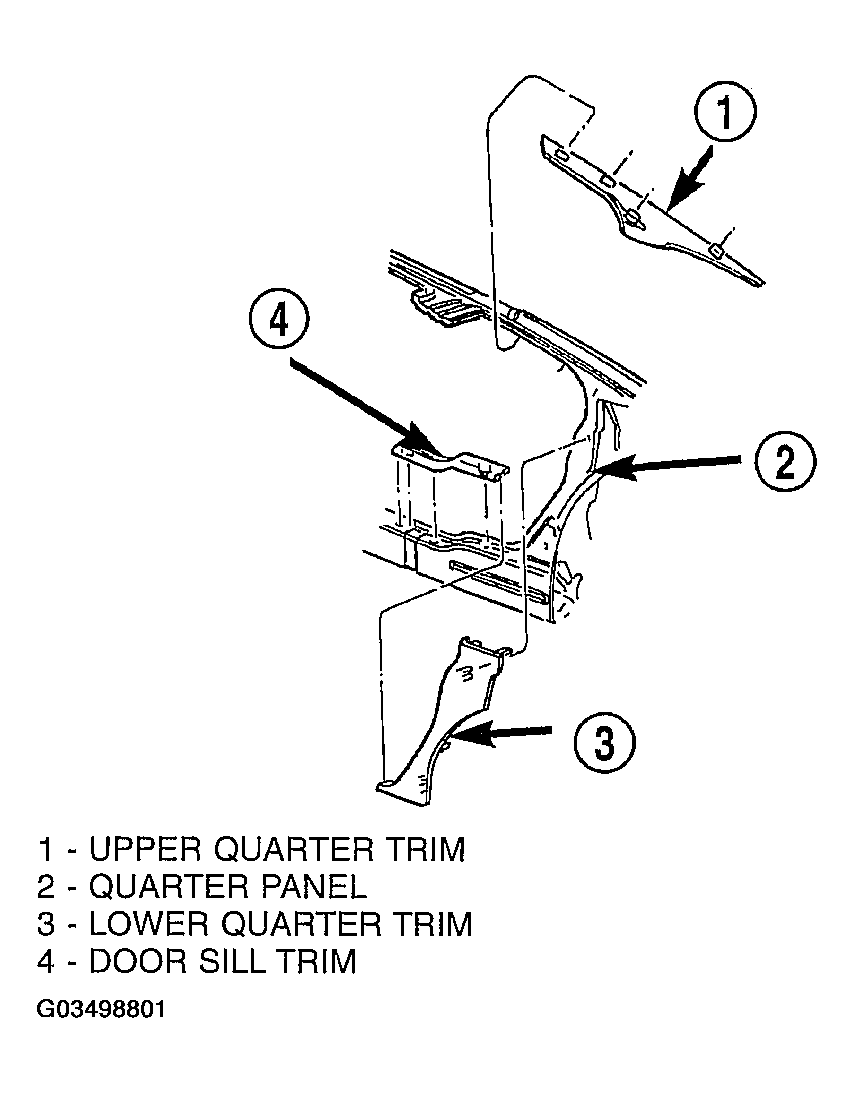

    Fig 1: Removing Lower Quarter Trim
    G03498801Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove sill trim as necessary to clear quarter trim removal path.
  4. Disengage clips attaching lower quarter trim to inner quarter trim from vehicle.
  5. Remove quarter trim from vehicle.
