Front Door Window Frame Molding: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove flag trim, speaker, door trim panel, watershield as necessary, and mirror.
  2. Remove door glass run weatherstrip as necessary to gain access to applique fasteners.
  3. Remove screws attaching molding to window frame (Fig 1 ).

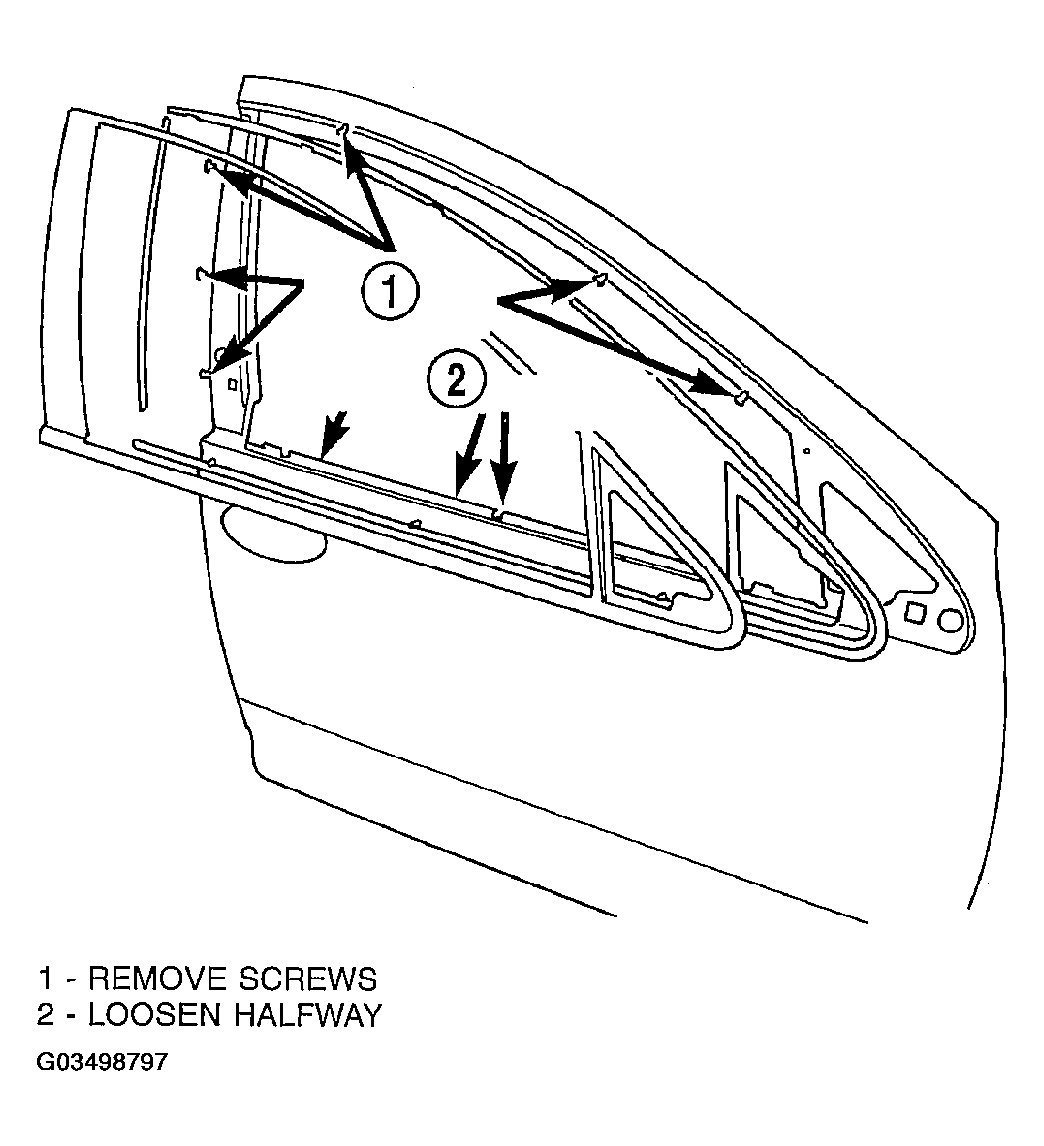

    Fig 1: Front Door Frame Window
    G03498797Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove molding from door.
