Spot Lamp - Police: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position bulb into spot lamp assembly.
  2. Install the hold downs.
  3. Connect the electrical connector to the spot lamp head assembly.
  4. Tilt the sealed beam toward the spot lamp head assembly.
  5. Install the bezel to the spot lamp head assembly.

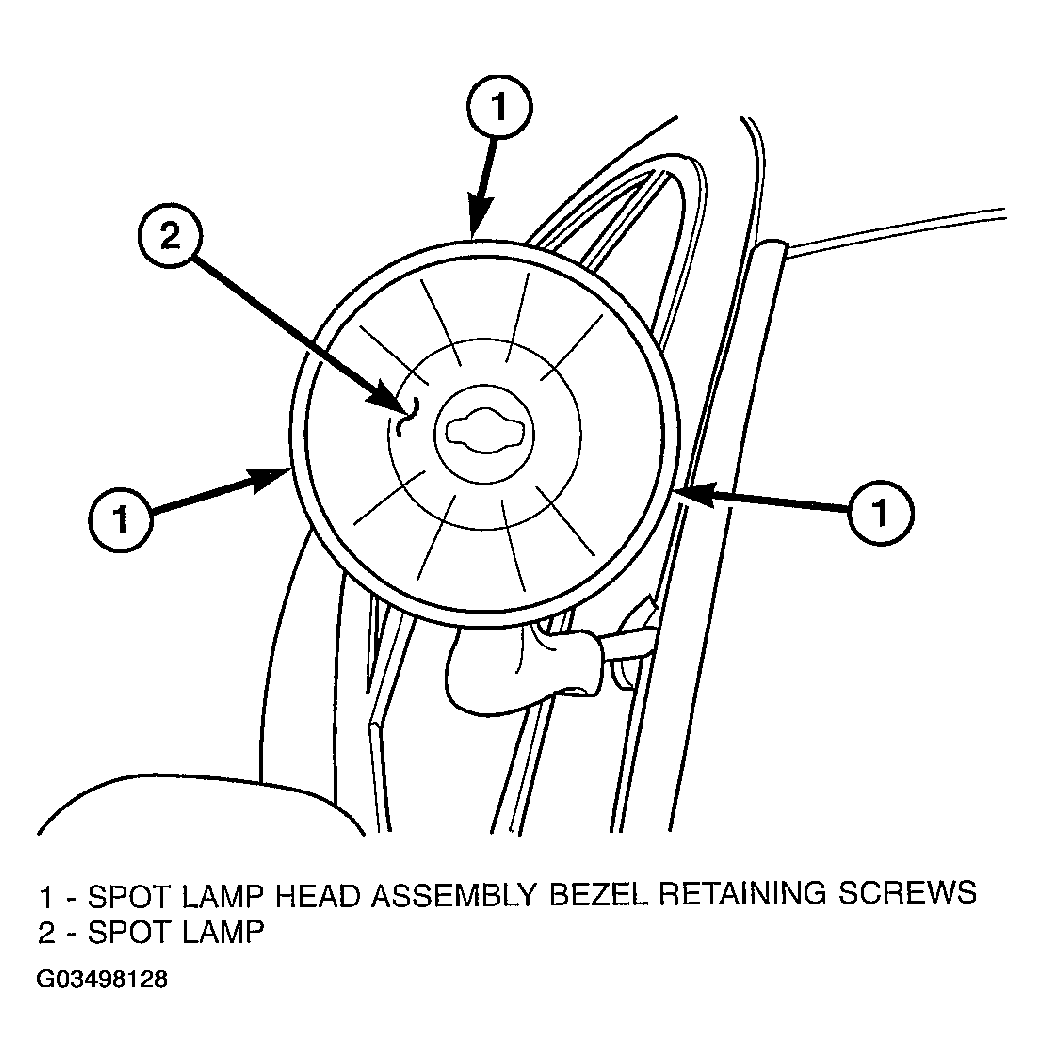

  6. Install the screws retaining the bezel to the spot lamp head assembly (Figure) and tighten to 2 N.m (18 in.lbs.).
  7. Lower the spot lamp from the operating to stowed position.
  8. Install the fuse and PDC cover.
  9. Verify system and vehicle operation.
