Side Repeater Lamp Unit - Export: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Working in the appropriate front wheel well, remove the rear most fasteners from the front wheel-house liner.
- Reach up behind the side repeater lamp and depress the two lamp housing retaining tabs (Figure). Remove the side repeater lamp unit from the fender opening.

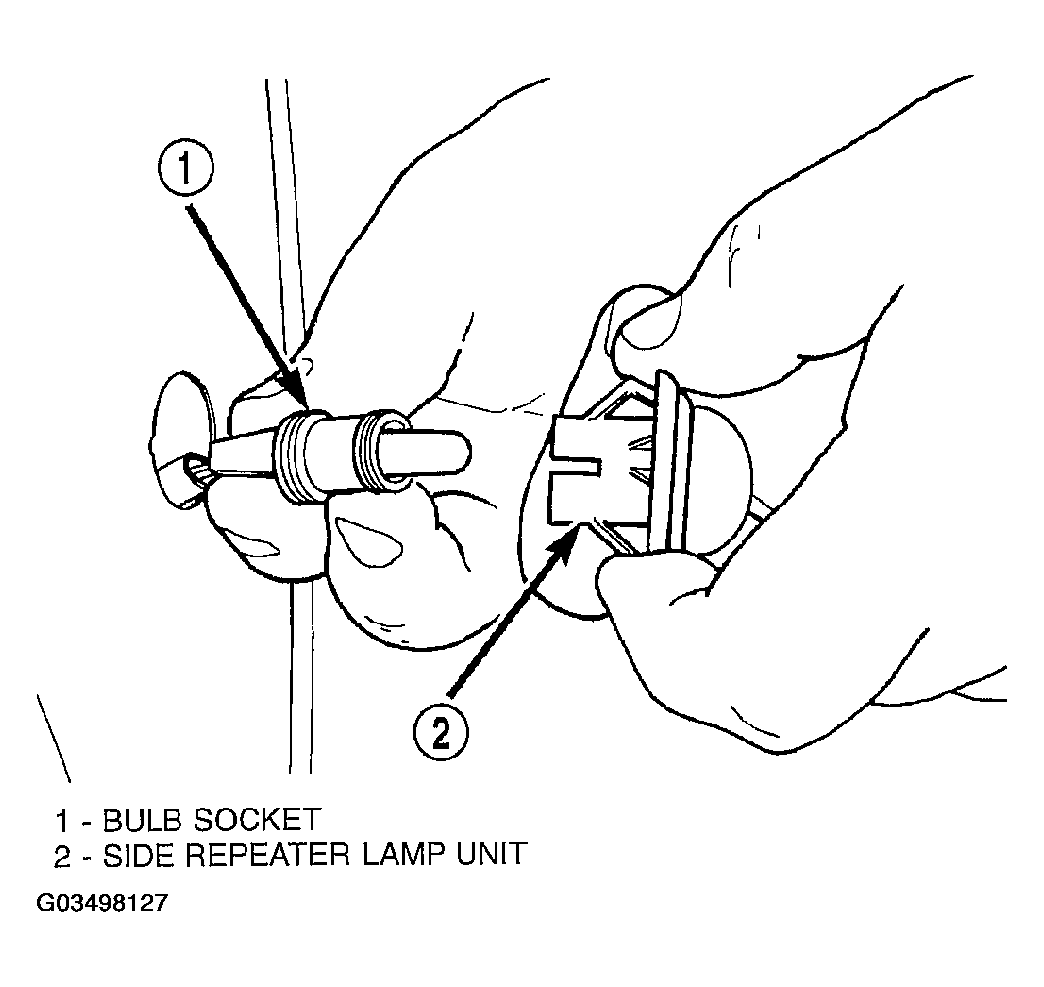

- Rotate the side repeater lamp unit counterclockwise and remove the lamp socket from the lamp unit (Figure).
