Radiator Fan Relay Harness Connector End View (At Fan; Except 2.7L Base)

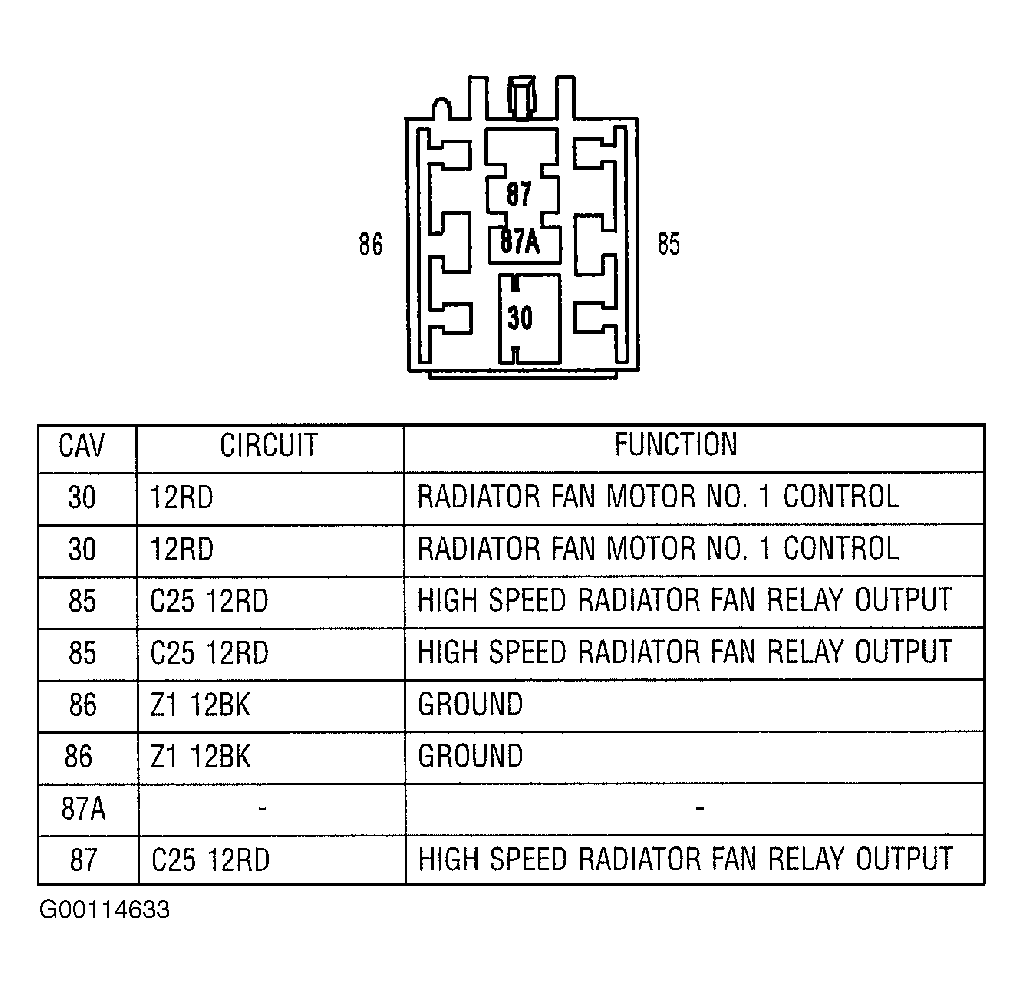

Fig 1: Identifying Radiator Fan Relay No. 1 Harness Connector (At Fan; Except 2.7L Base)
G00114633Courtesy of DAIMLERCHRYSLER CORPORATION

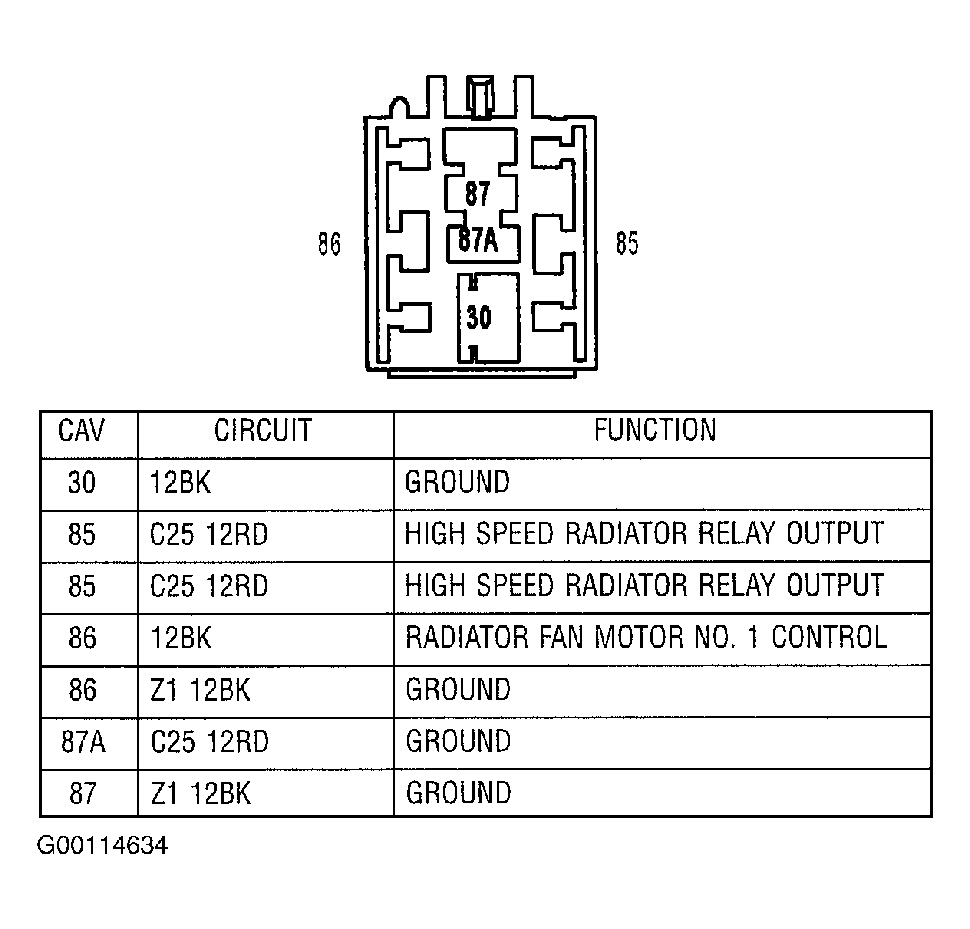

Fig 2: Identifying Radiator Fan Relay No. 2 Harness Connector (At Fan; Except 2.7L Base)
G00114634Courtesy of DAIMLERCHRYSLER CORPORATION
