Radiator Fan Motor Harness Connector End View (Except 2.7L Base)

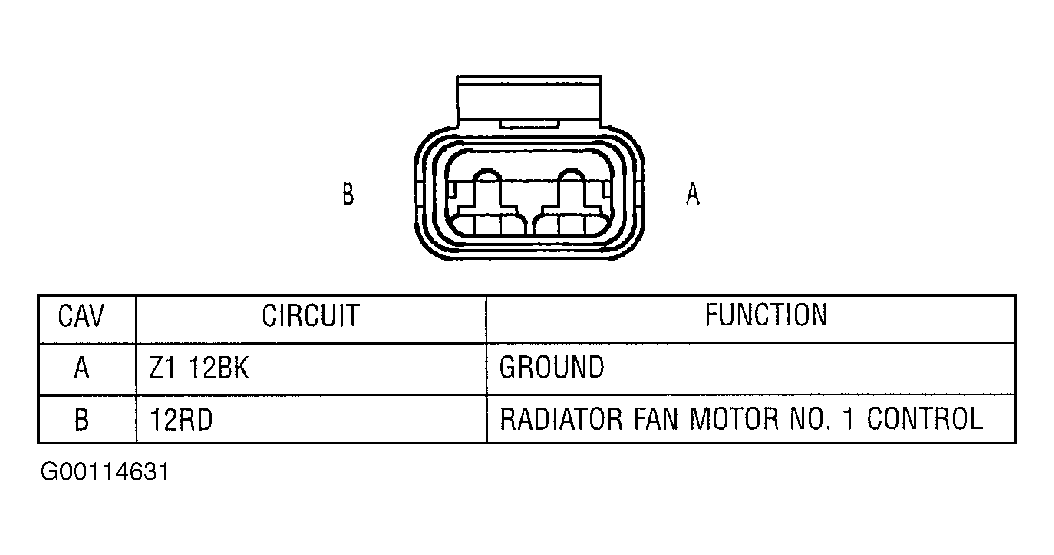

Fig 1: Identifying Radiator Fan Motor No. 1 Harness Connector (Except 2.7L Base)
G00114631Courtesy of DAIMLERCHRYSLER CORPORATION

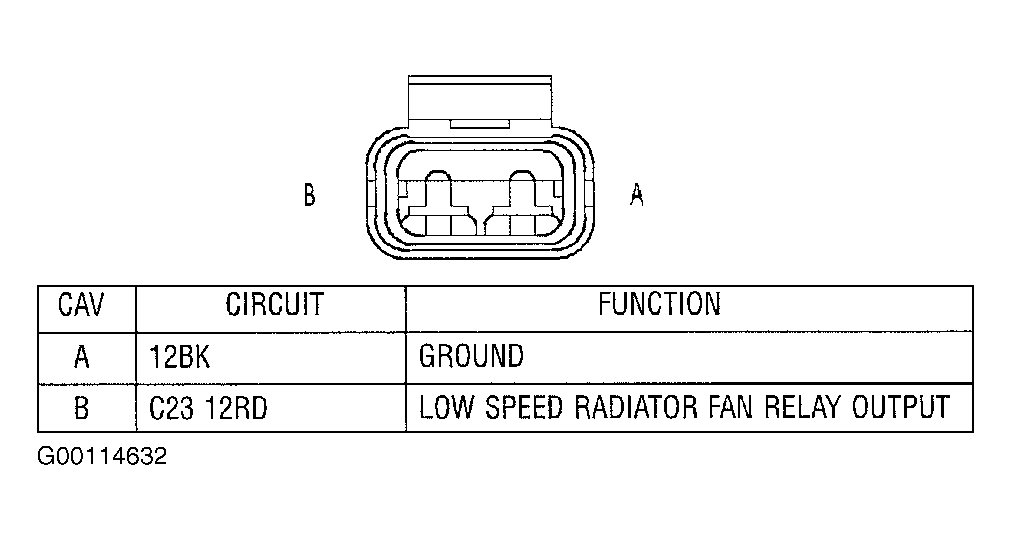

Fig 2: Identifying Radiator Fan Motor No. 2 Harness Connector (Except 2.7L Base)
G00114632Courtesy of DAIMLERCHRYSLER CORPORATION
