Piston Rings: Removal

  1. Remove piston and connecting rod. (Refer to PISTON & CONNECTING ROD )

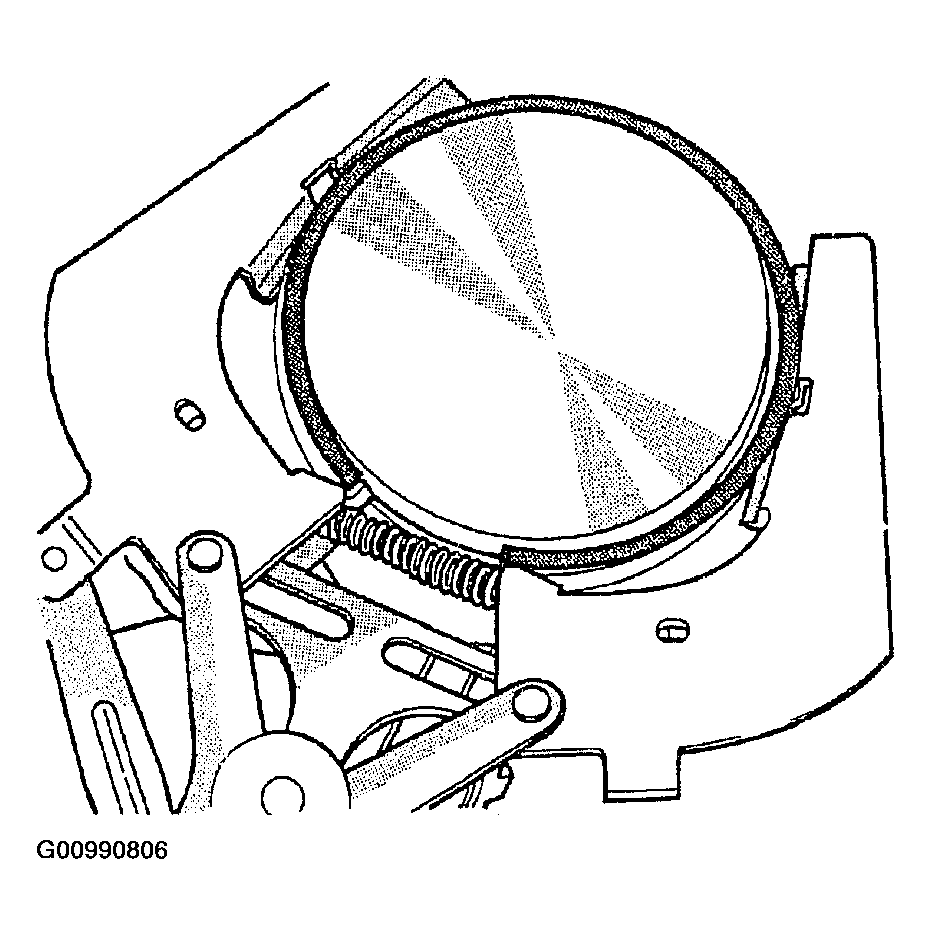

  2. Remove No. 1 and No.2 piston rings (Fig 1) from piston using a ring expander tool (Figure).

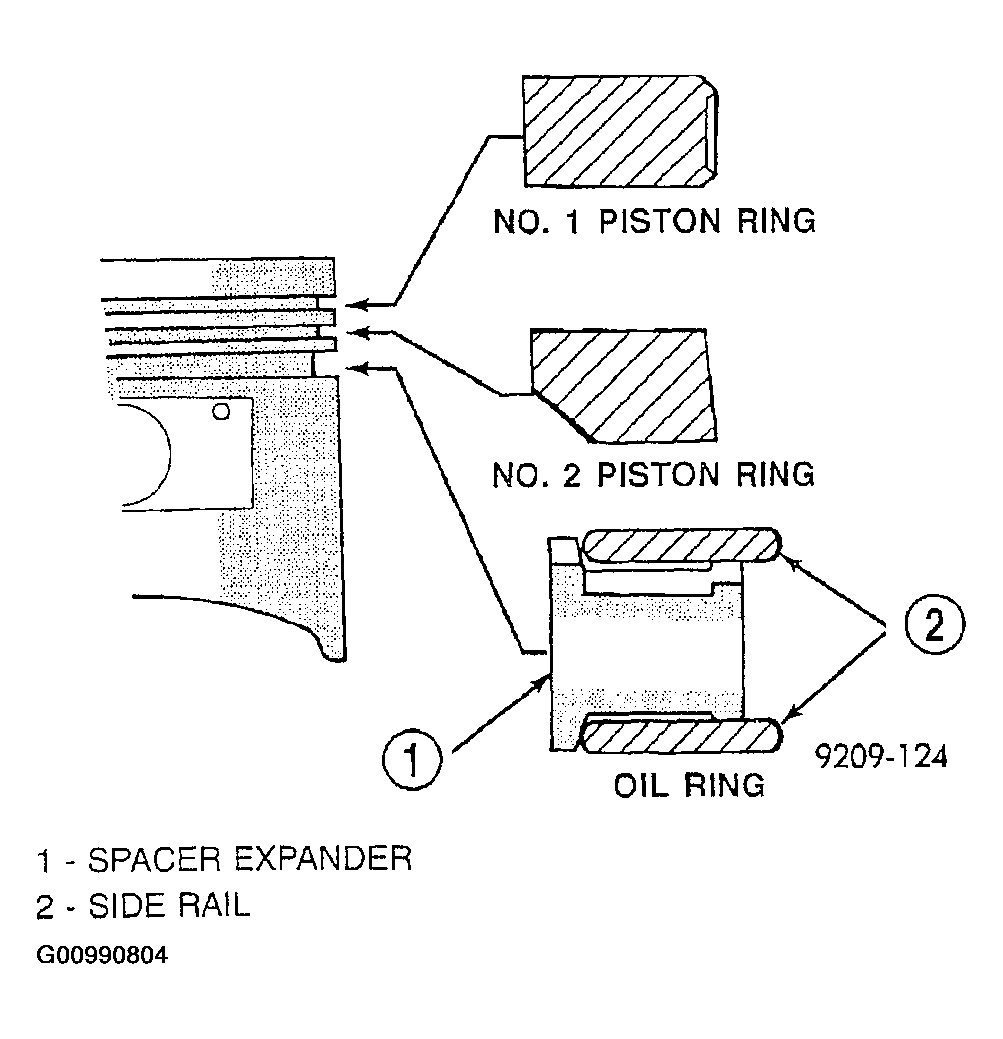

    Fig 1: Removing & Installing Piston Ring
    G00990804Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove upper oil ring side rail (Fig 1).
  4. Remove lower oil ring side rail (Fig 1).
  5. Remove oil ring expander (Fig 1).
