Intake/Exhaust Valves & Seats: Installation

  1. Coat valve stems with clean engine oil and insert them in cylinder head.
  2. If valves or seats have been reground, check valve tip height (A) (Fig 1). If valve tip height for intake valve is greater than 47.59 mm (1.8737 in.) or 49.14 mm (1.9347 in.) for exhaust valve, grind valve tip until within specifications. Make sure measurement is taken from cylinder head surface to the top of valve stem.

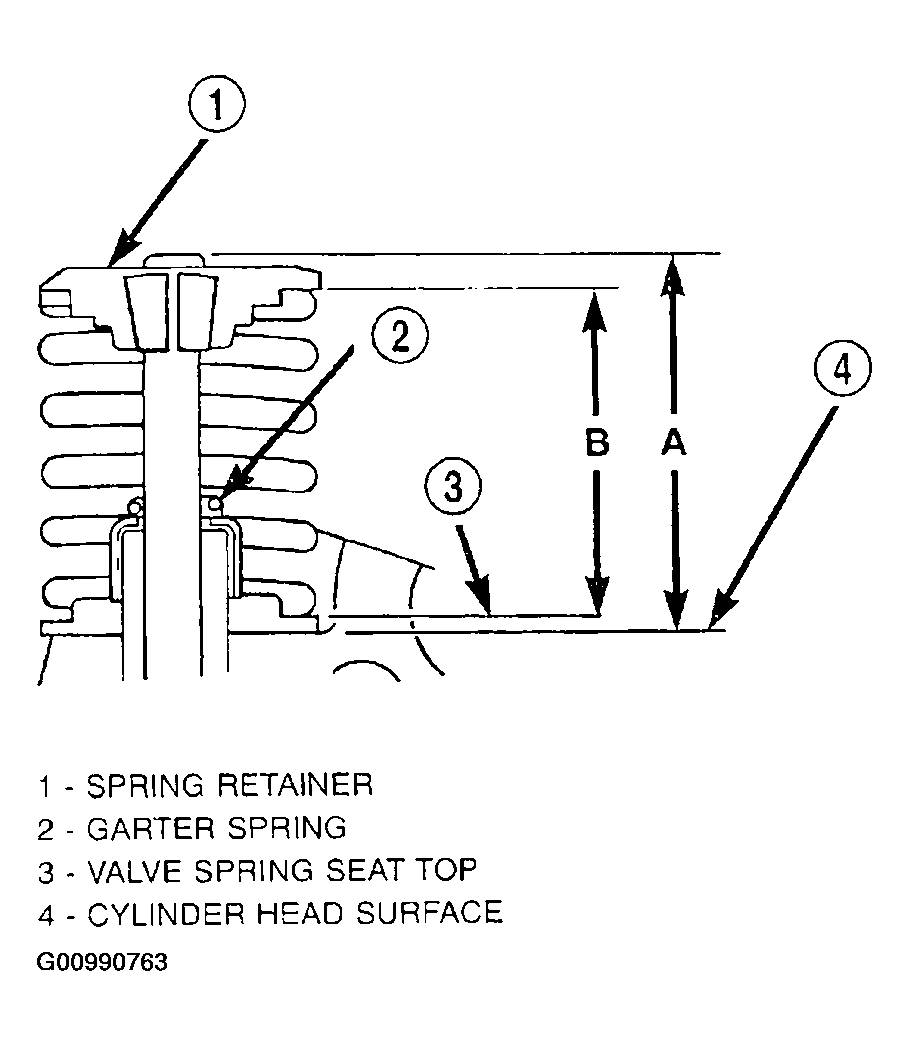

    Fig 1: Checking Valve Tip Height & Valve Spring Installed Height
    G00990763Courtesy of DAIMLERCHRYSLER CORP.
  3. Install valve spring. (Refer to VALVE SPRINGS )
