Exhaust Manifold - Right: Installation

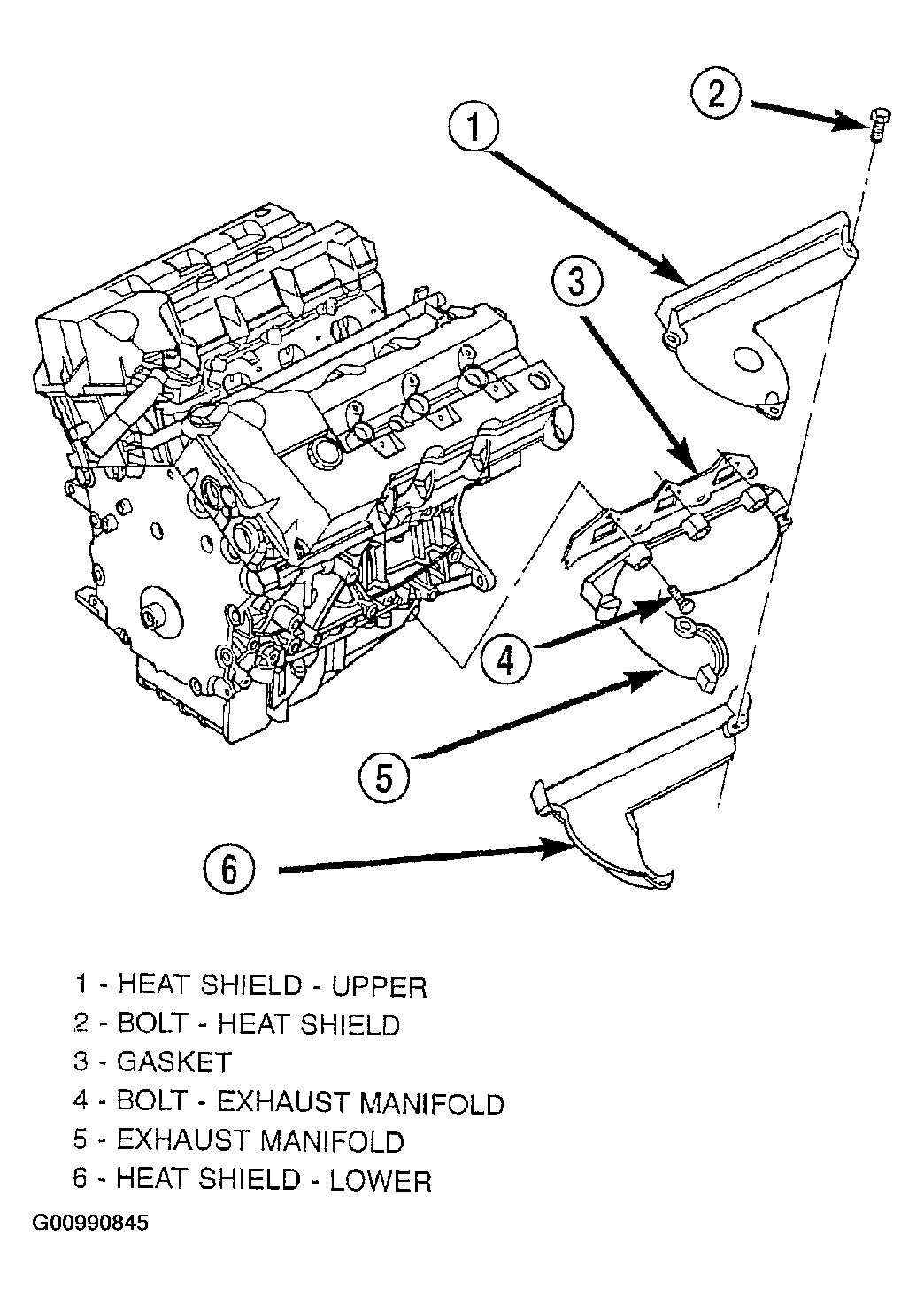

  1. Install exhaust manifold and gasket. Tighten bolts working from center outwards to 23 N.m (200 in. lbs.) (Figure).
  2. Install heat shields. Tighten attaching screws to 12 N.m (105 in. lbs.) (Figure).
  3. Install a new V-Band clamp and tighten 10 N.m (100 in. lbs.).
  4. Install oxygen sensor and connect electrical connector.
  5. Install EGR tube using new gaskets. Tighten screws to 11 N.m (95 in. lbs.).
  6. Install bolt attaching battery cable housing tube to transmission housing. Tighten bolt to 101 N.m (75 ft. lbs.).
  7. Install air intake tube and air filter housing.
  8. Connect negative cable.
