Exhaust Manifold - Left: Installation

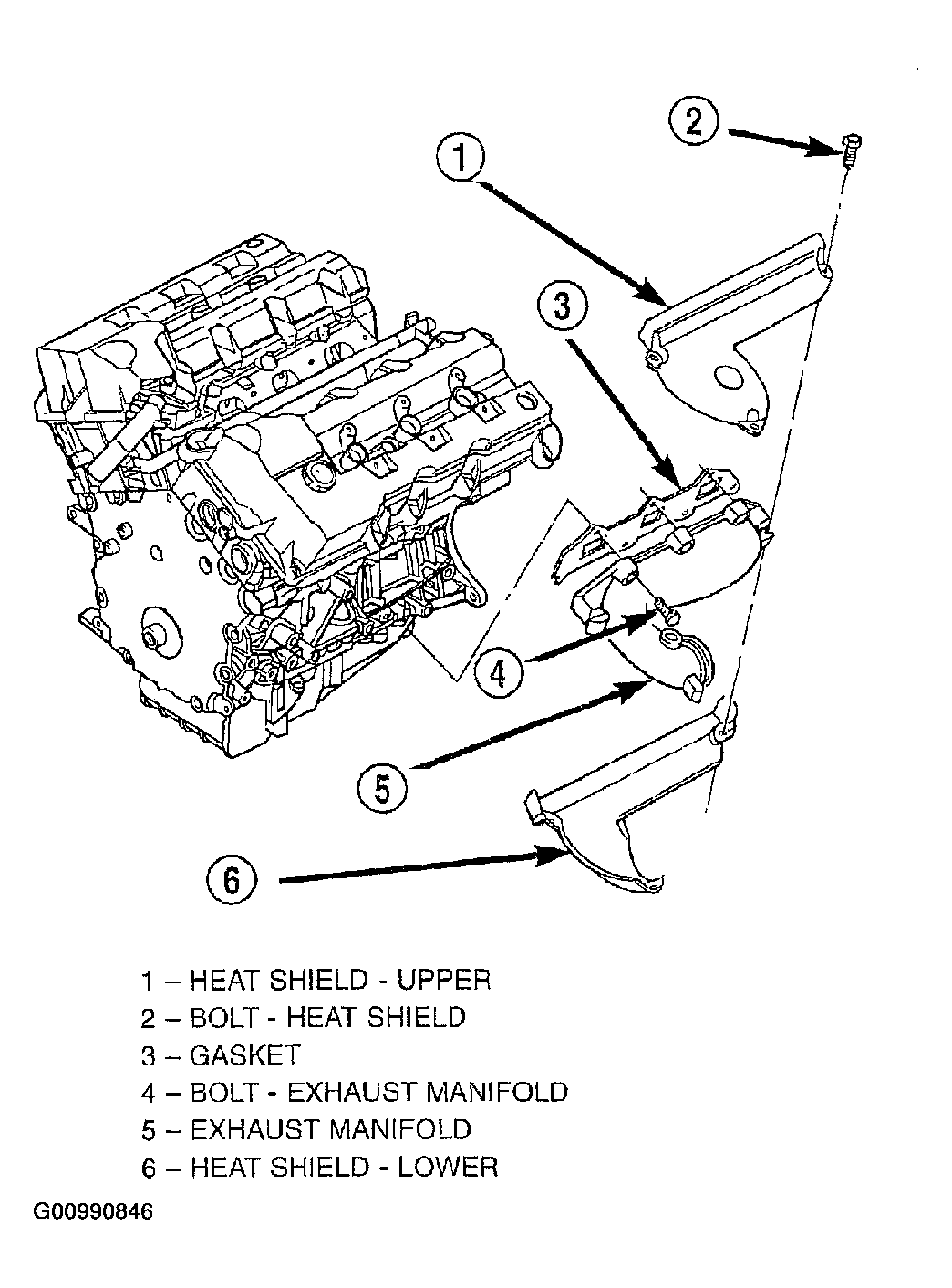

  1. Install exhaust manifold and gasket. Tighten bolts starting at the center working outward to 23 N.m (200 in. lbs.) (Figure).
  2. Install heat shields. Tighten screws to 12 N.m (105 in. lbs.) (Figure).
  3. Install oxygen sensor and connect electrical connector.
  4. Raise vehicle on hoist.
  5. Install bolt attaching transmission dipstick tube.
  6. Replace the O-ring on engine oil dipstick tube and install tube.
  7. Install the left catalytic converter. (Refer to CATALYTIC CONVERTER LEFT )
  8. Install a new V-Band clamp and tighten to 10 N.m (100 in. lbs.).
  9. Install engine wiring harness support bracket to cylinder head and attach connectors to bracket.
  10. Install exhaust system. (Refer to INSTALLATION - EXHAUST SYSTEM )
  11. Connect negative cable.
