Cylinder Head: Removal

Perform fuel pressure release procedure before attempting any repairs. (Refer to FUEL SYSTEM PRESSURE RELEASE )
Disconnect negative cable from remote jumper terminal.
Drain cooling system (Refer to STANDARD PROCEDURE - COOLING SYSTEM DRAINING ) and remove accessory drive belts (Refer to DRIVE BELTS - 2.7L ).
Remove the vibration damper (Refer to VIBRATION DAMPER ).
Remove upper and lower intake manifolds (Refer to INTAKE MANIFOLD - UPPER and INTAKE MANIFOLD - LOWER ).
Remove cylinder head cover and timing chain cover. (Refer to CYLINDER HEAD COVER(S) ) (Refer to TIMING CHAIN COVER )
Remove water outlet connector (Fig 1). (Refer to COOLANT OUTLET CONNECTOR - 2.7L )

Fig 1: Removing Water Outlet Connector
Courtesy of DAIMLERCHRYSLER CORP.
Rotate crankshaft until crankshaft sprocket timing mark aligns with timing mark on oil pump housing.
Remove primary timing chain. (Refer to TIMING BELT/CHAIN AND SPROCKETS )
Remove camshaft bearing caps gradually in REVERSE sequence of installation (10-1) (Fig 2).

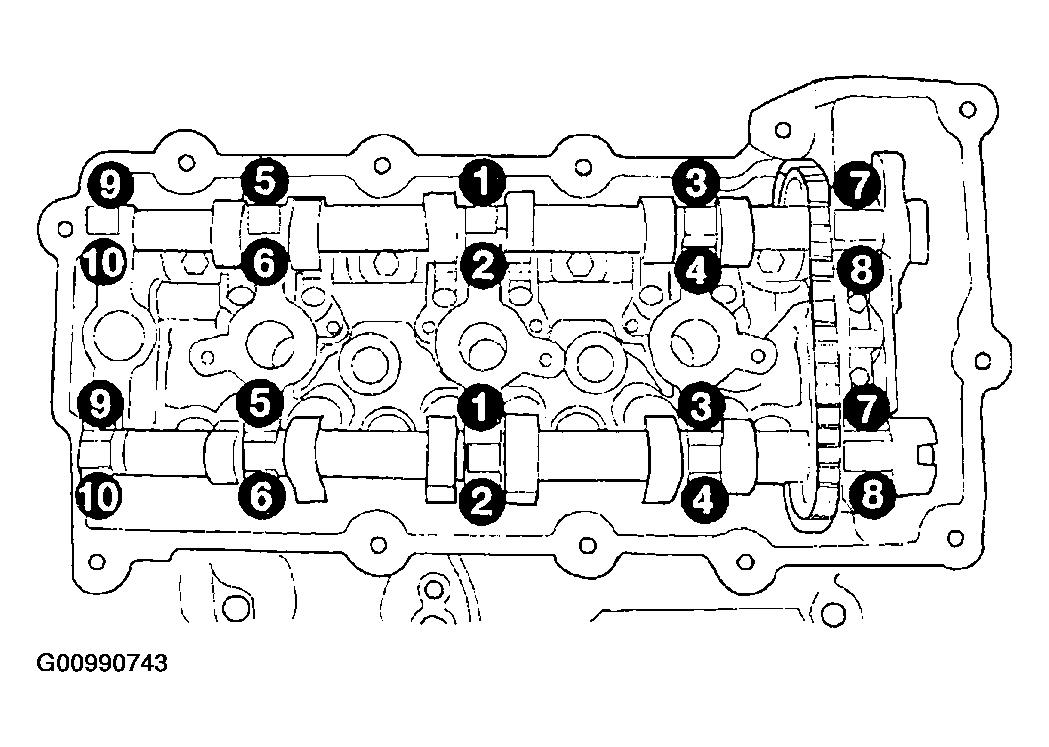

Fig 2: Removing Camshaft Bearing Caps
Courtesy of DAIMLERCHRYSLER CORP.
Remove camshafts and valvetrain components from cylinder head (Fig 3). Note component locations for re-installation in original locations.

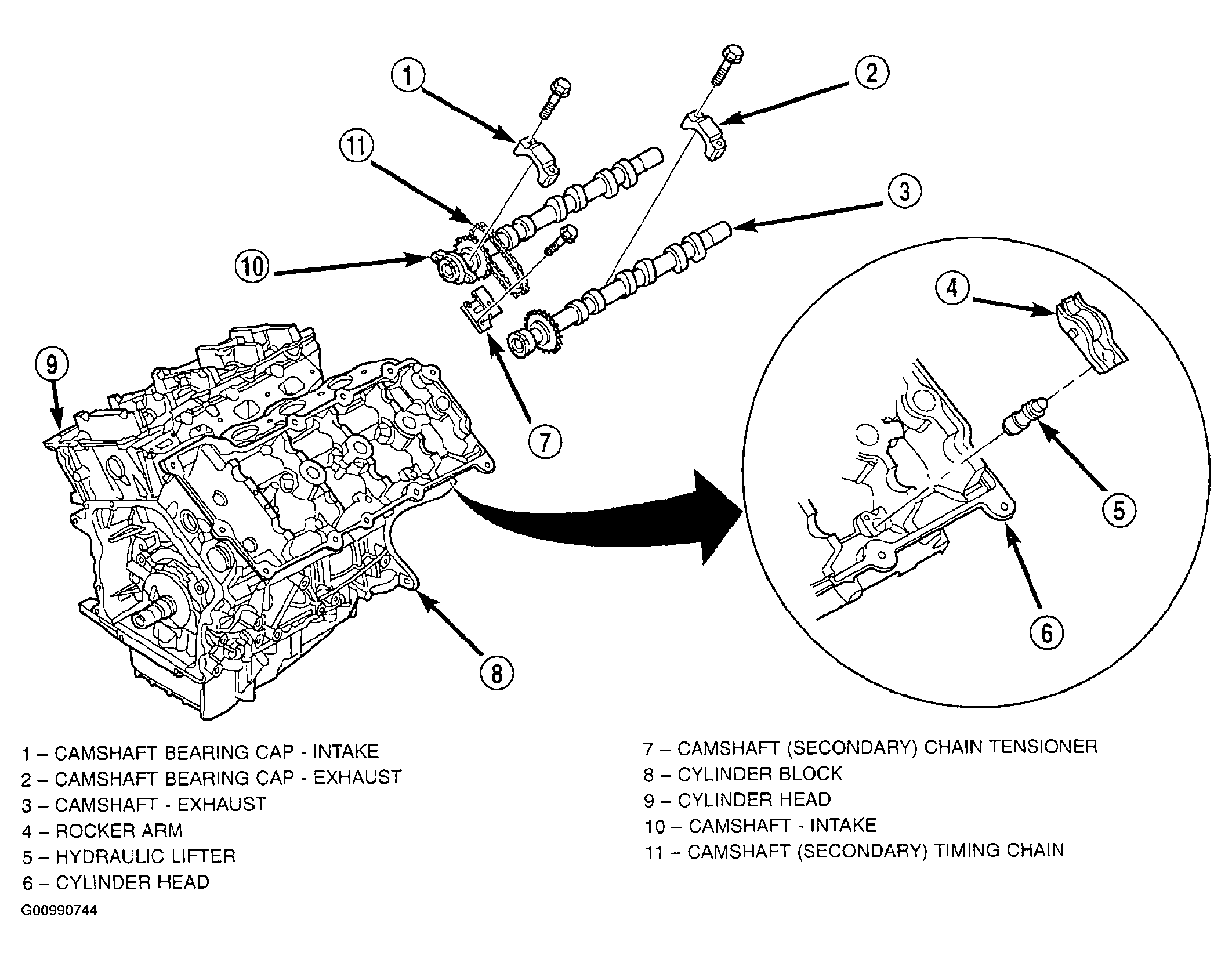

Fig 3: Removing Camshaft & Valvetrain Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove V-Band clamp(s) at exhaust manifold to catalytic converter pipe.
NOTE: Do not reuse V-Band clamp.

CAUTION: Ensure cylinder head bolts 11-9 (Fig 4) are removed before attempting the removal of cylinder head, as damage to cylinder head and/or block may occur.

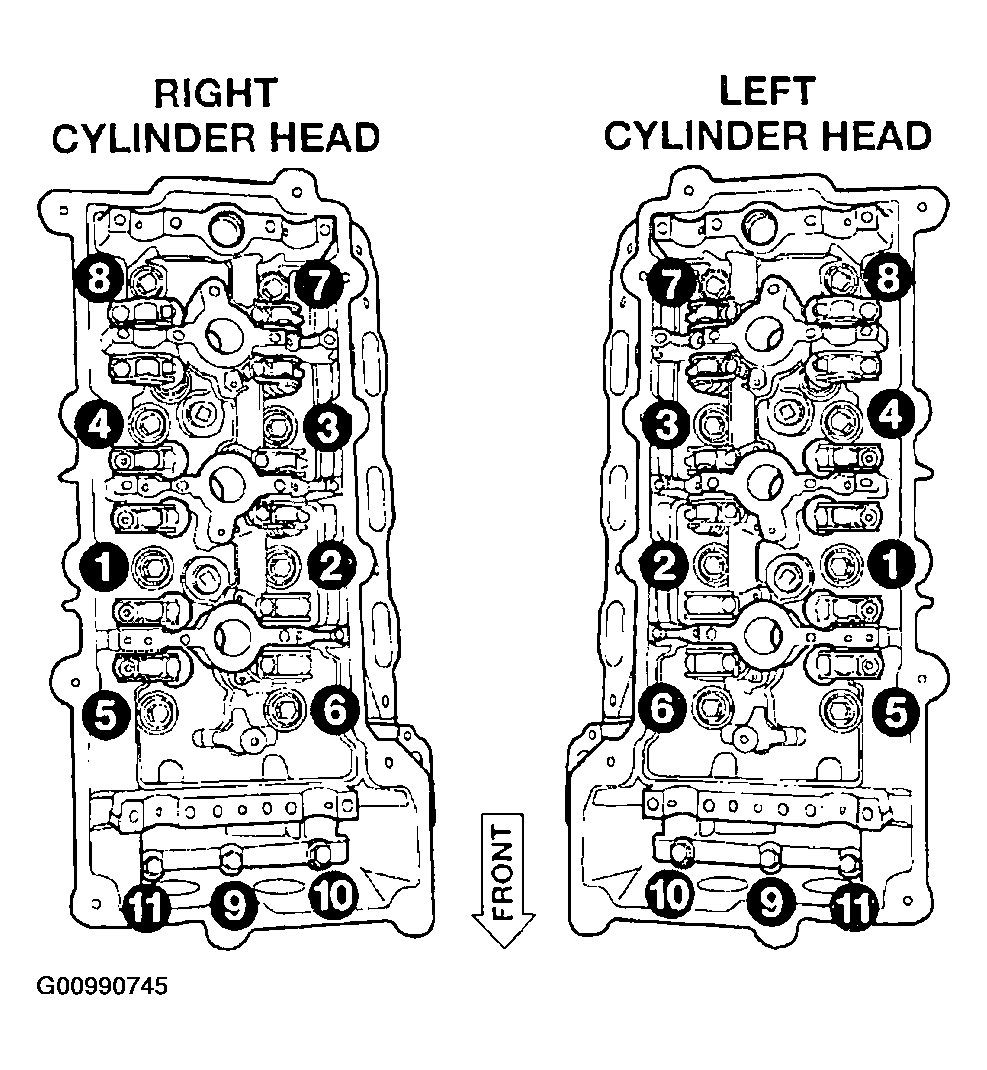

Fig 4: Removing Cylinder Head Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove cylinder head bolts in reverse sequence of installation (Fig 4) starting with bolts 11-9, then bolts 8-1.
Remove cylinder head(s).
Remove and discard cylinder head gasket.
Clean cylinder head and block sealing surfaces. (Refer to CLEANING )
