Radio C1 (Except Base) Connector End View

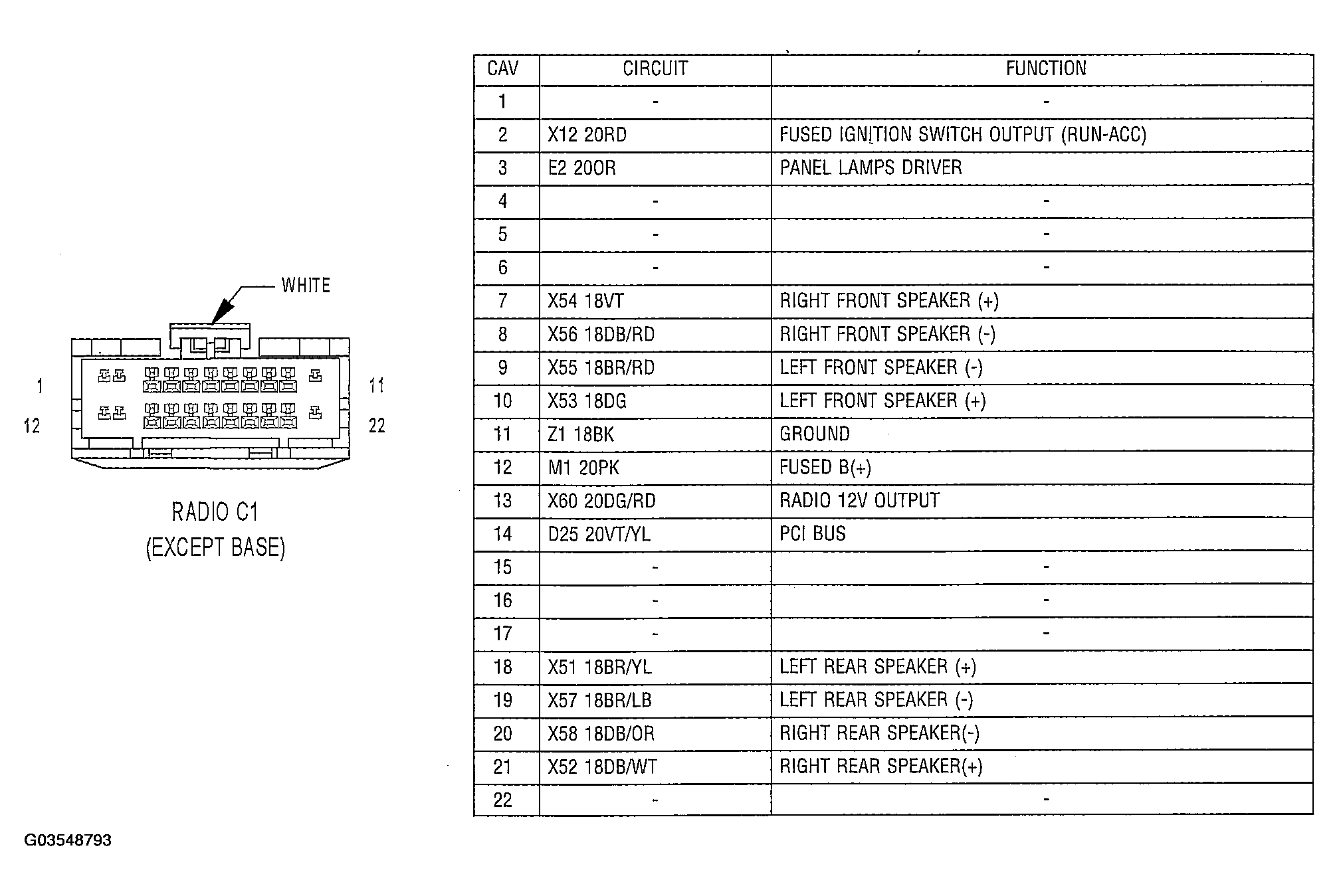

Fig 1: Radio C1 (Except Base)

G03548793

Courtesy of CHRYSLER GROUP, LLC
