Power Amplifier Connector End View (C1)

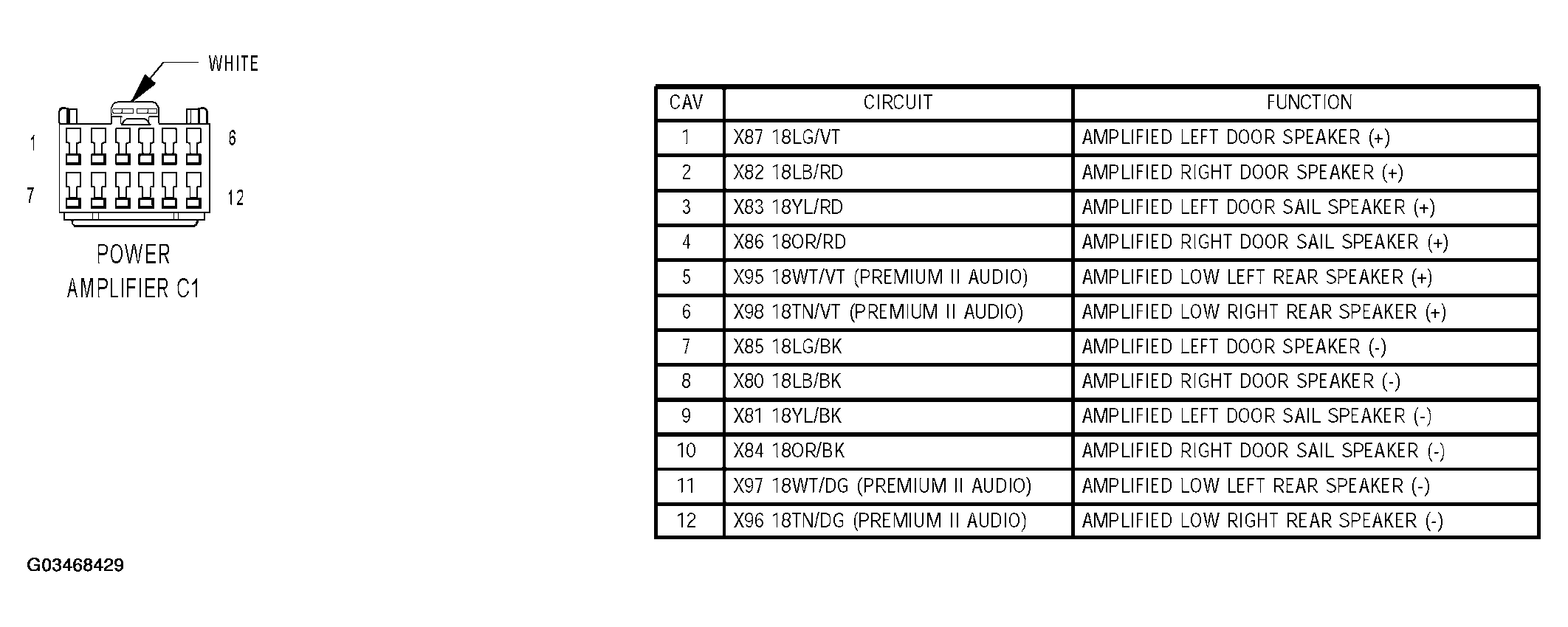

Fig 1: Power Amplifier Connector End View (C1)

G03468429

Courtesy of CHRYSLER GROUP, LLC
