Passenger Heated Seat Switch Connector End View

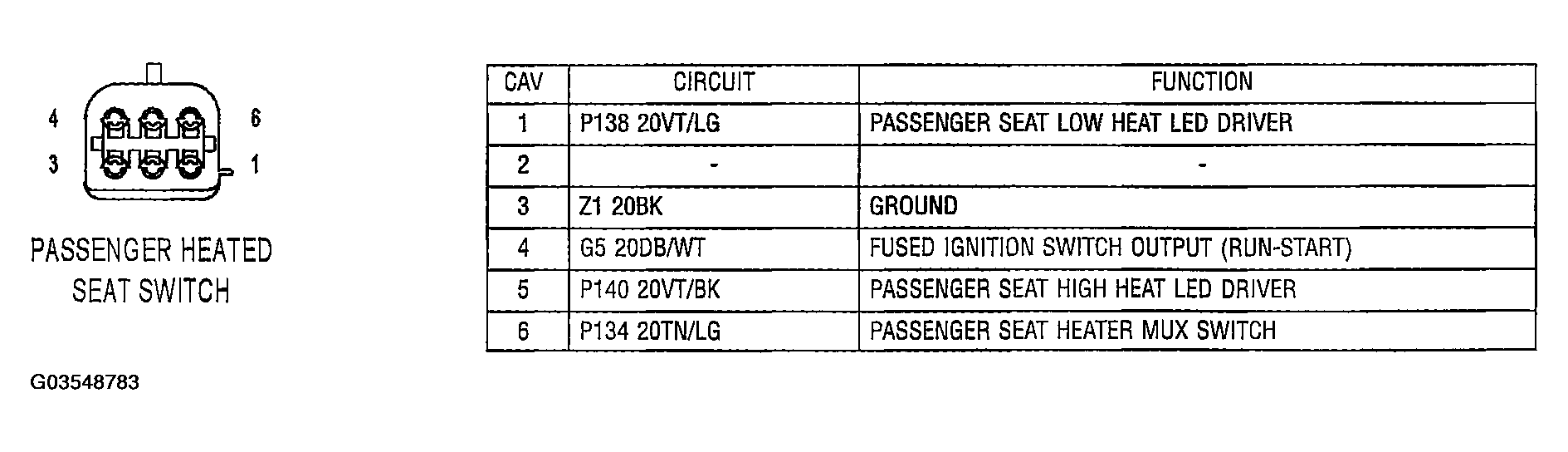

Fig 1: Passenger Heated Seat Switch

G03548783

Courtesy of CHRYSLER GROUP, LLC
