Mode Door Actuator Connector End View

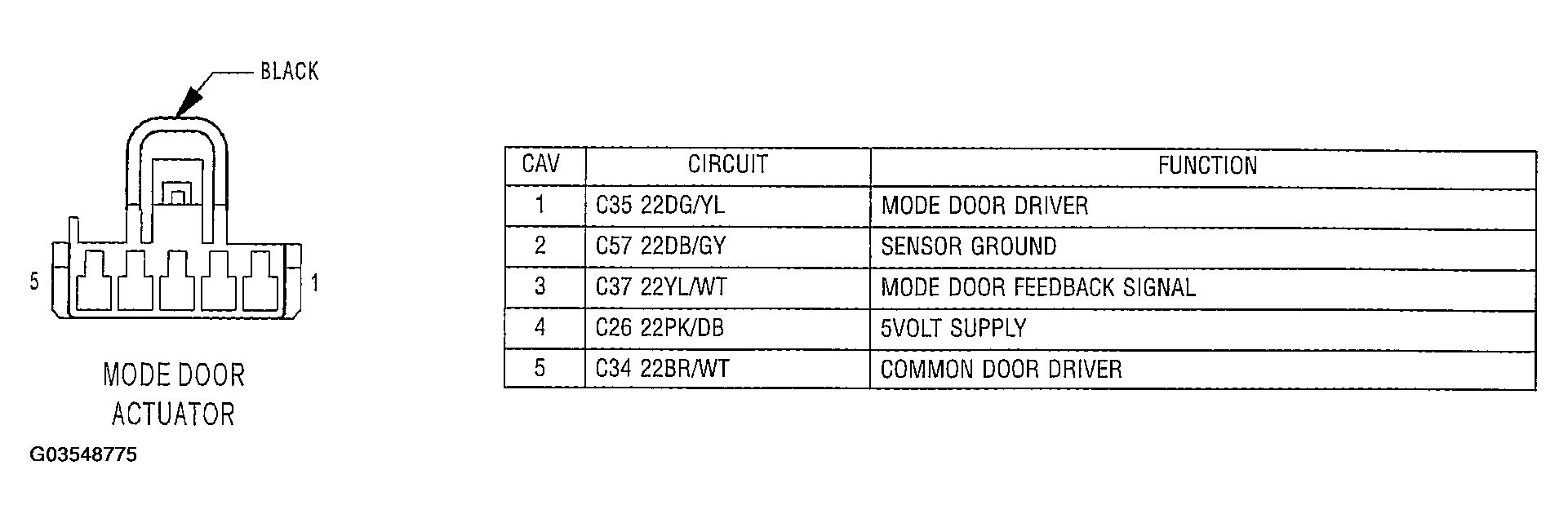

Fig 1: Mode Door Actuator

G03548775

Courtesy of CHRYSLER GROUP, LLC
