Engine Side Inline Connector End View (C101)

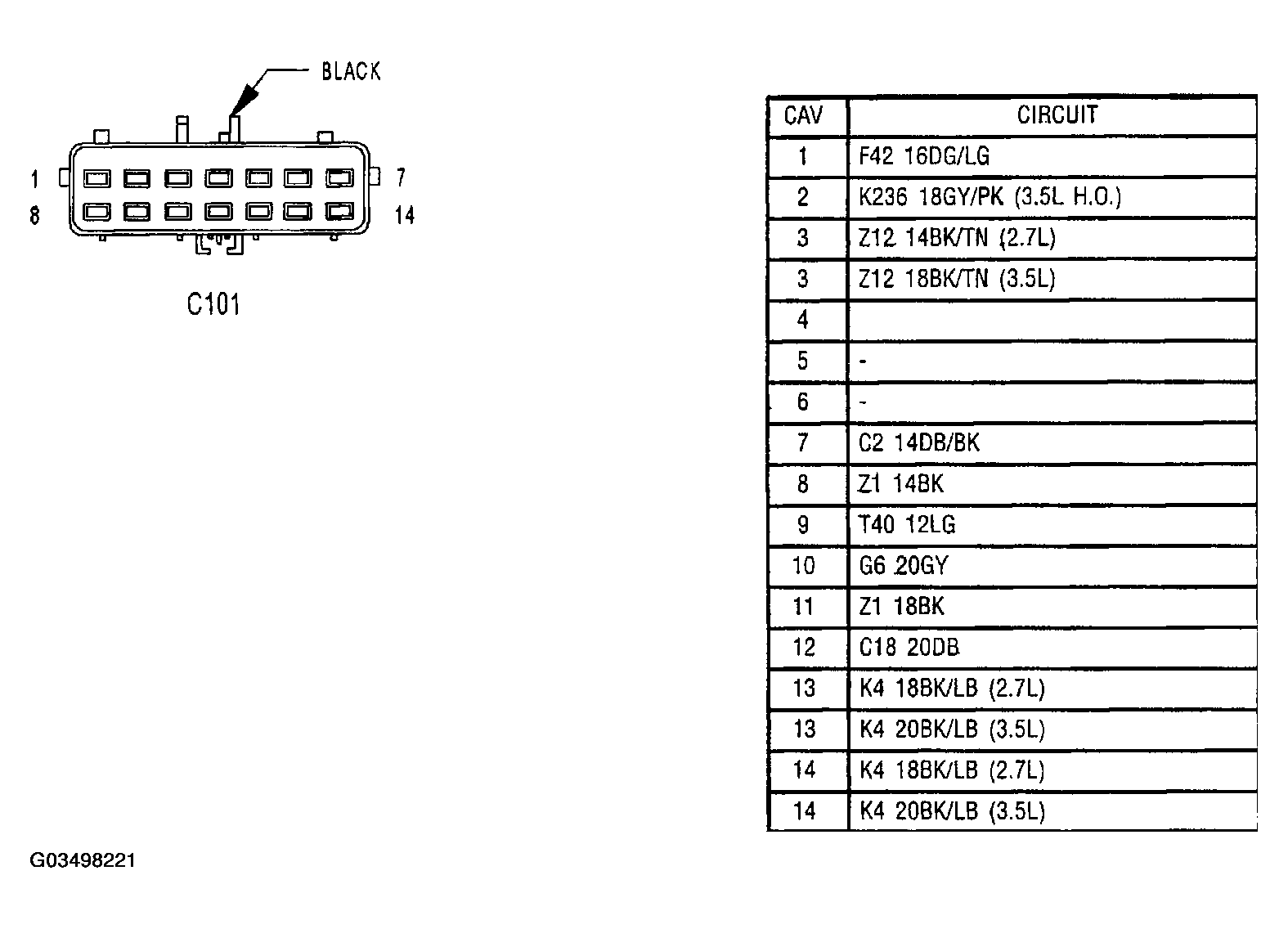

Fig 1: Engine Side Inline Connector End View (C101)

G03498221

Courtesy of CHRYSLER GROUP, LLC
