Driver Power Seat Rear Riser Motor Connector End View

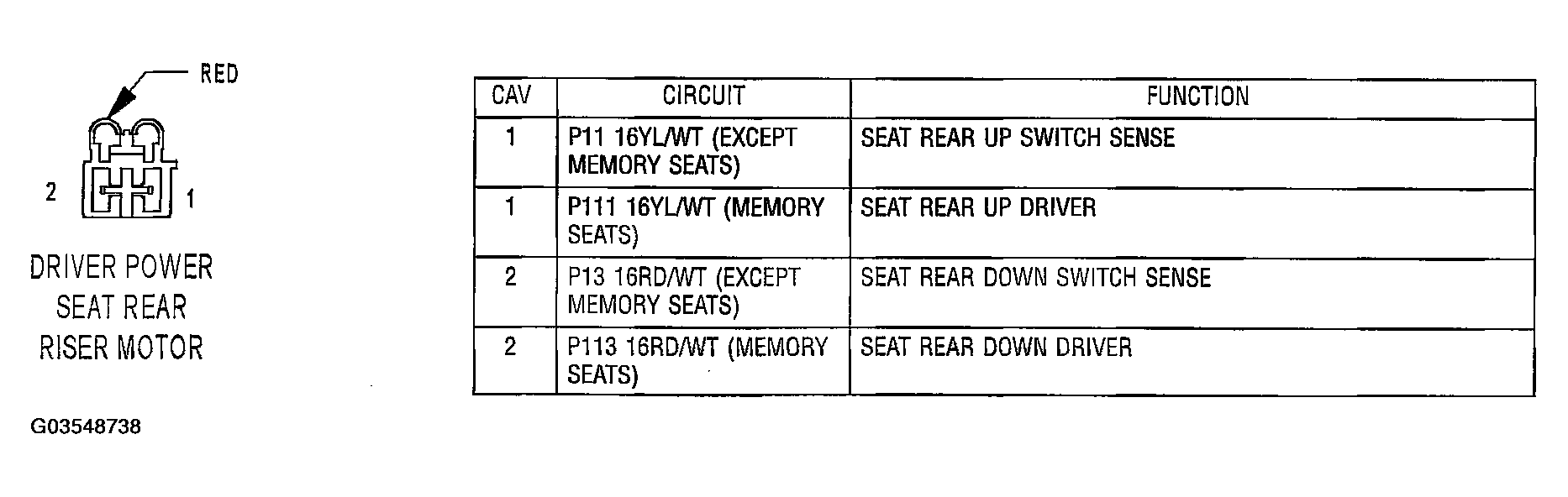

Fig 1: Driver Power Seat Rear Riser Motor

G03548738

Courtesy of CHRYSLER GROUP, LLC
