Center Instrument Panel Speaker Connector End View

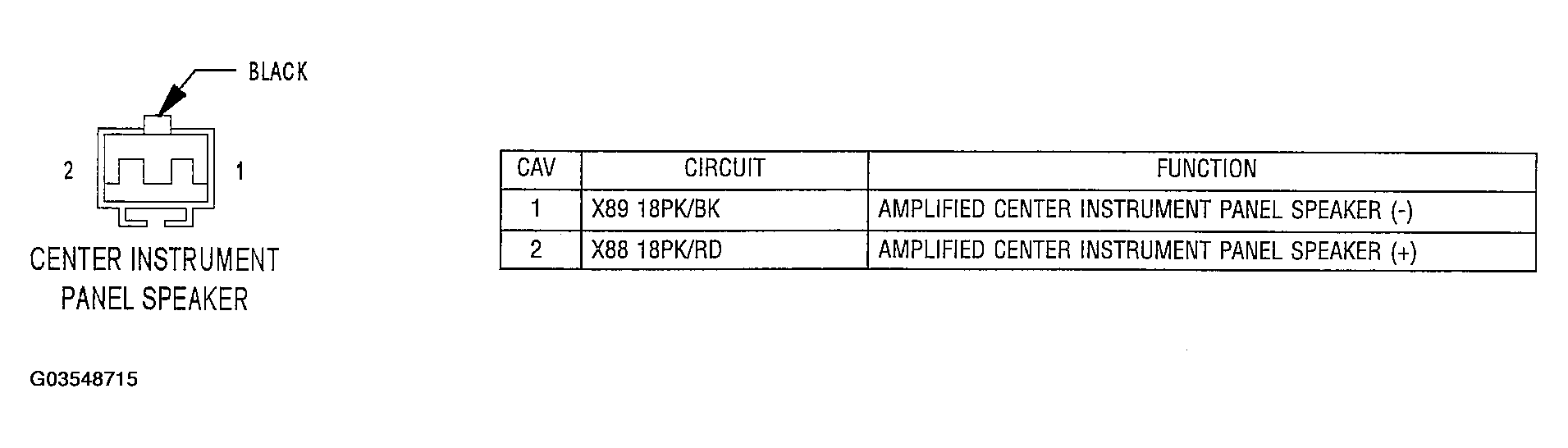

Fig 1: Center Instrument Panel Speaker

G03548715

Courtesy of CHRYSLER GROUP, LLC
