Analog Clock (LTD/300M) Connector End View

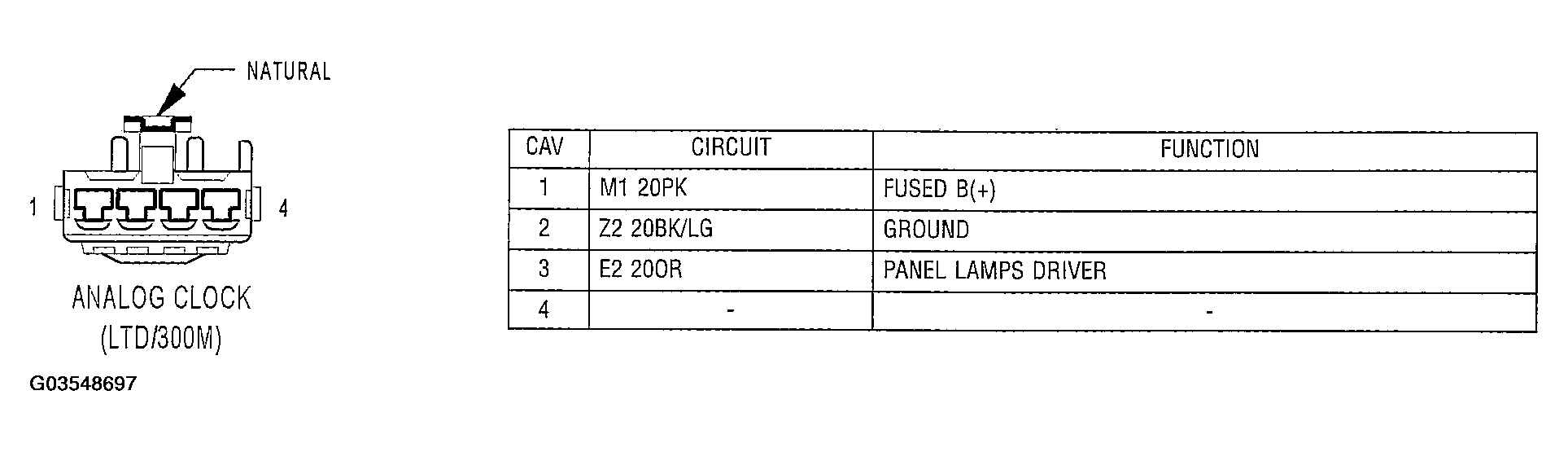

Fig 1: Analog Clock (LTD/300M)

G03548697

Courtesy of CHRYSLER GROUP, LLC
