Connector PINOUTS

Fig 1: Identifying Brake Lamp Switch - Gray 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

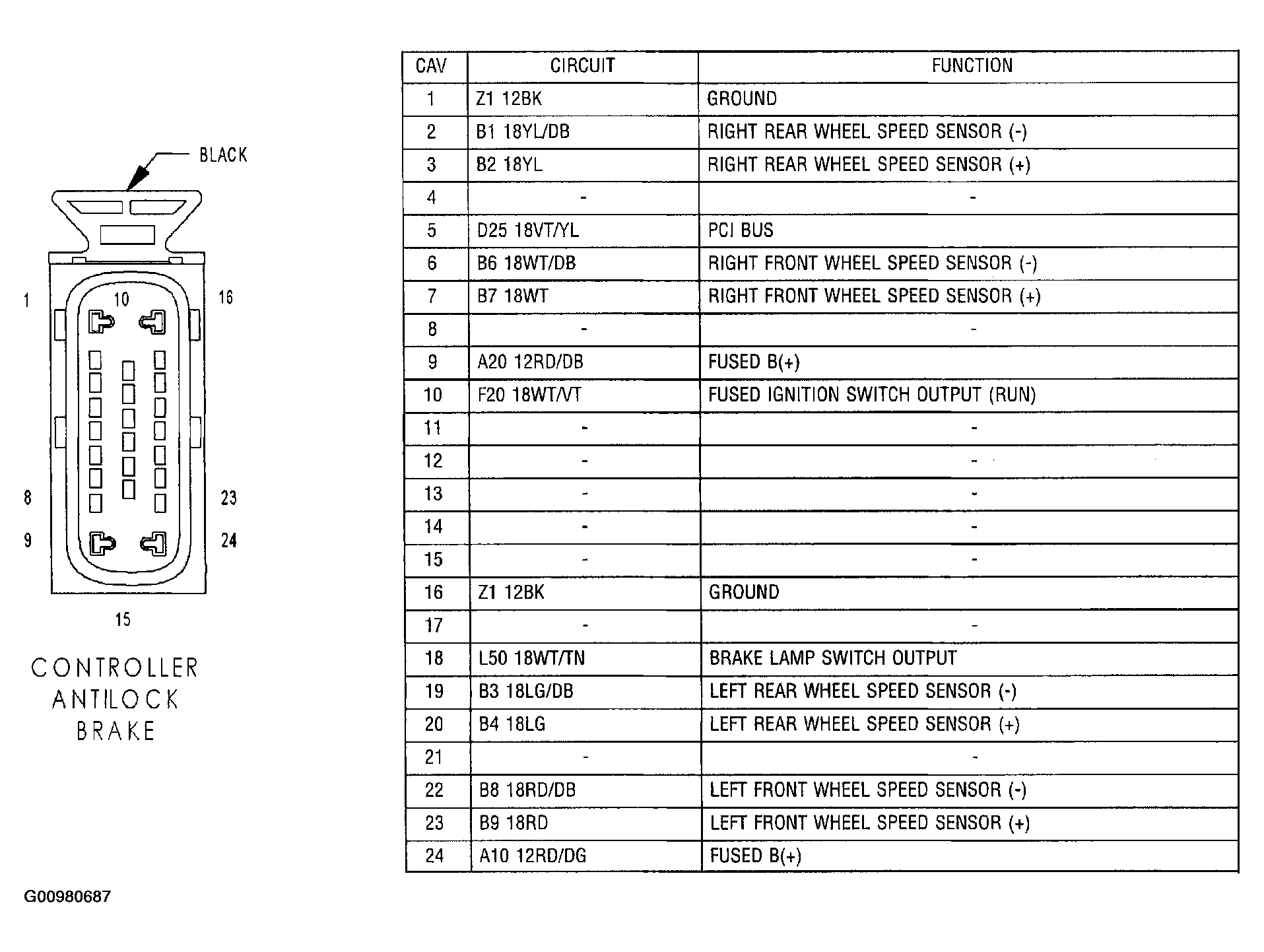

Fig 2: Identifying Controller Antilock Brake - Black 24 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

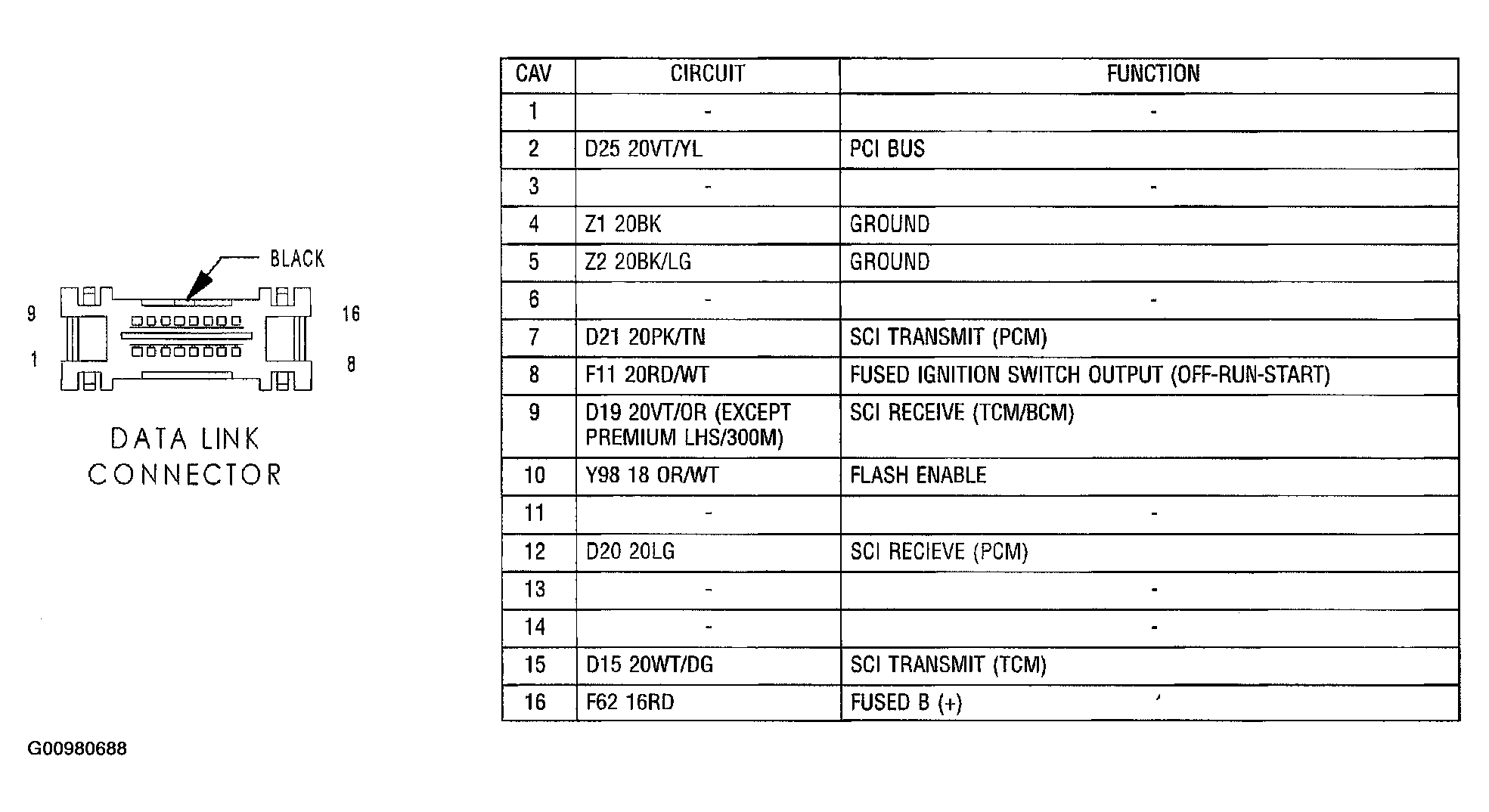

Fig 3: Identifying Data Link Connector - Black 16 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Left Front Wheel Speed Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Left Rear Wheel Speed Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Right Front Wheel Speed Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Right Rear Wheel Speed Sensor - Black 2 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Traction Control Switch - Natural 6 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

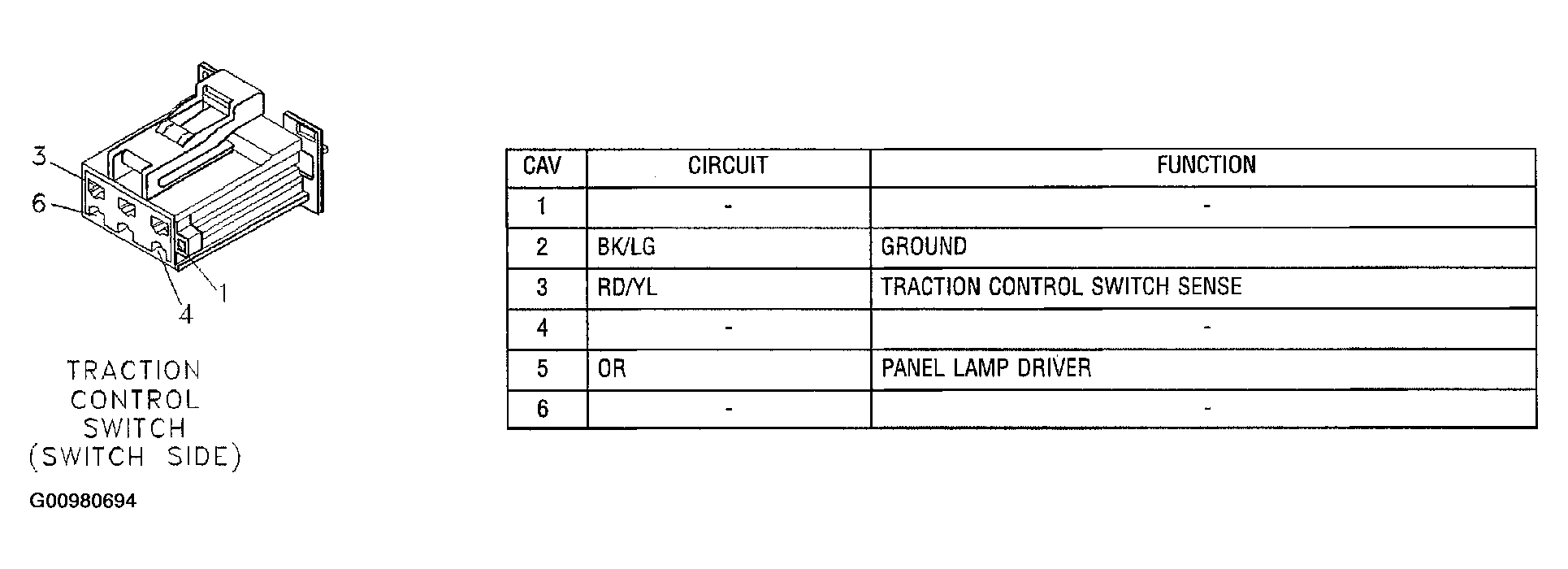

Fig 9: Identifying Traction Control Switch (Switch Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.
