Turn Signal Switch / Hazard Switch Connector End View

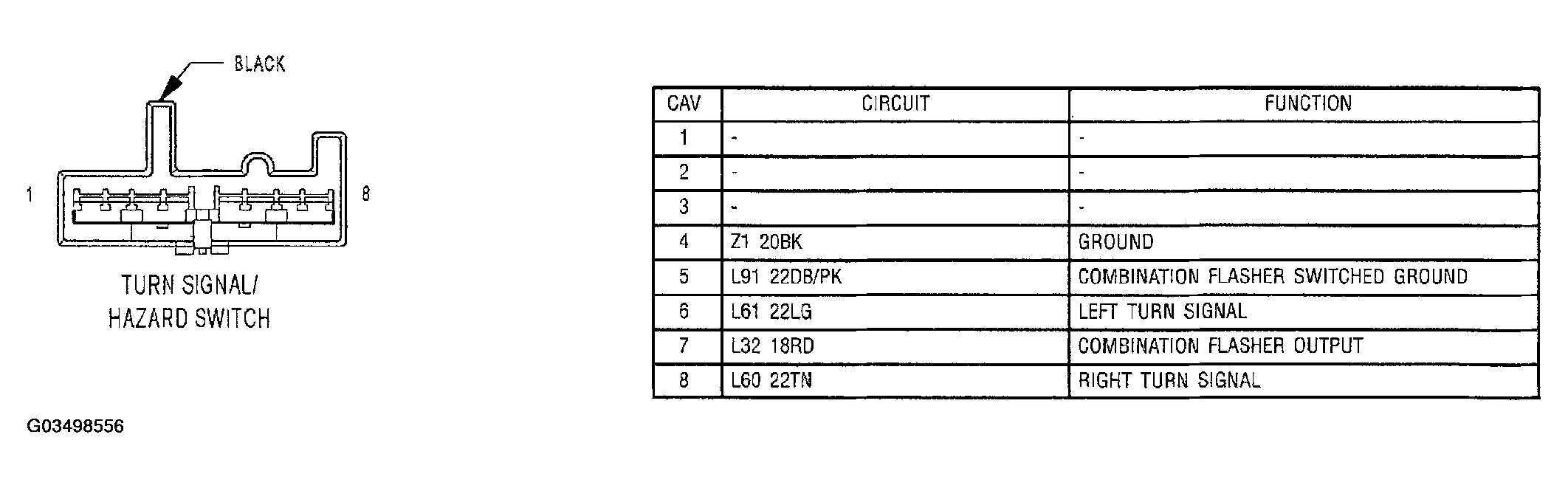

Fig 1: Turn Signal Switch / Hazard Switch Connector End View

G03498556

Courtesy of CHRYSLER GROUP, LLC
