Traction Control Switch Connector End View

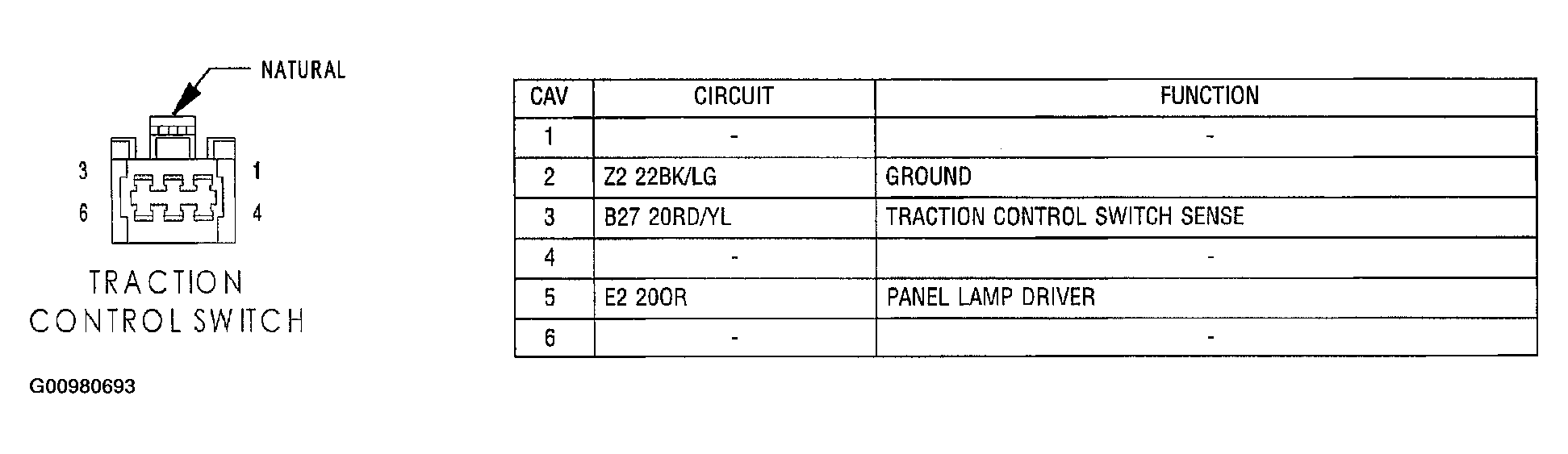

Fig 1: Traction Control Switch

G00980693

Courtesy of CHRYSLER GROUP, LLC

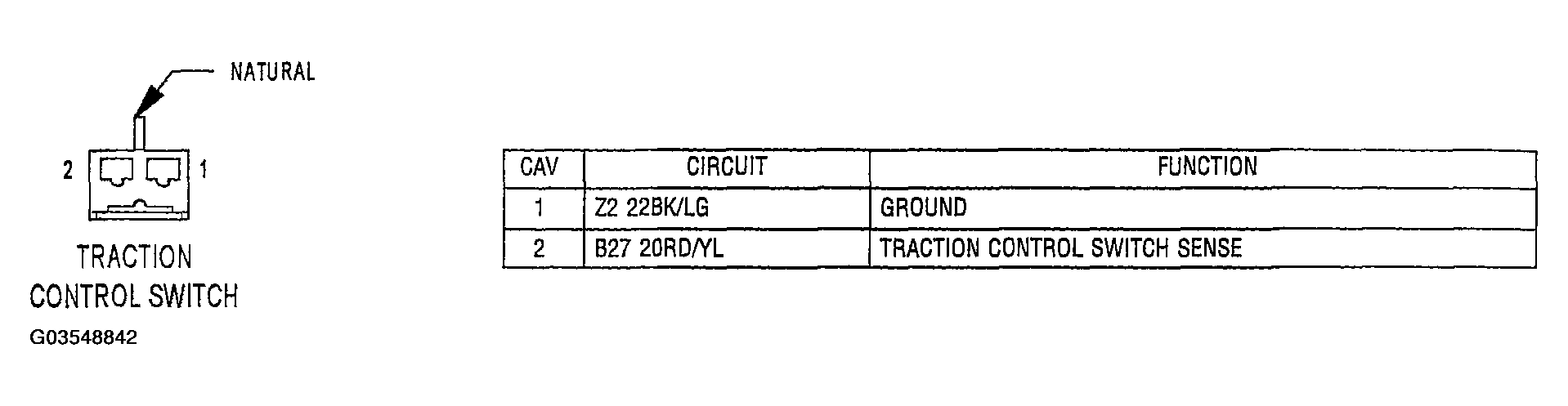

Fig 1: Traction Control Switch Connector End View

G03548842

Courtesy of CHRYSLER GROUP, LLC
