Throttle Position Sensor Connector End View (3.5L)

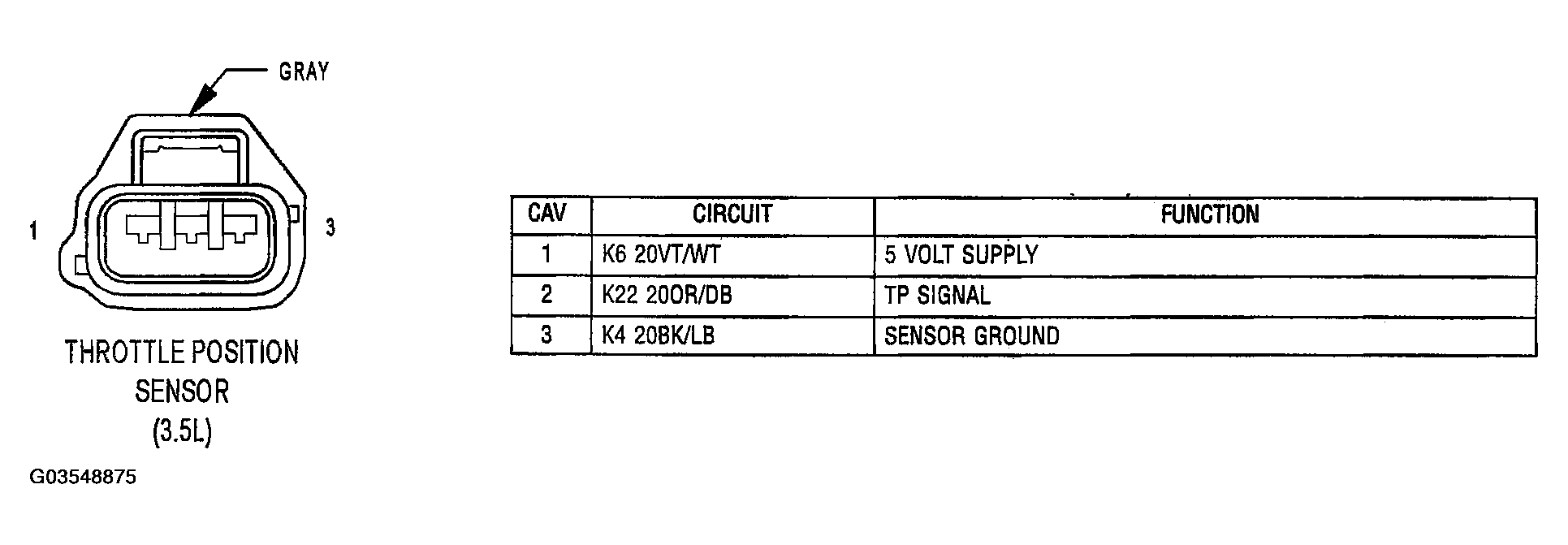

Fig 1: Throttle Position Sensor Connector End View (3.5L

G03548875

Courtesy of CHRYSLER GROUP, LLC
