Sunroof Control Module Connector End View

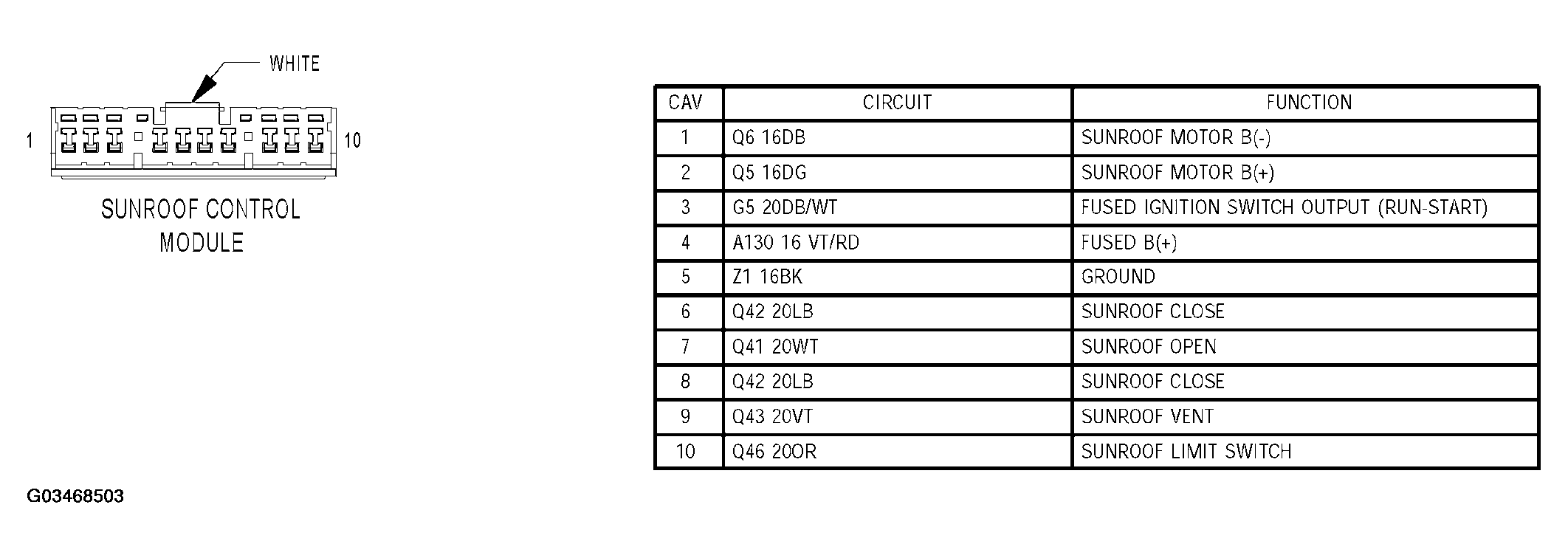

Fig 1: Sunroof Control Module Connector End View

G03468503

Courtesy of CHRYSLER GROUP, LLC
