Satellite Receiver Module C1 (Premium) Connector End View

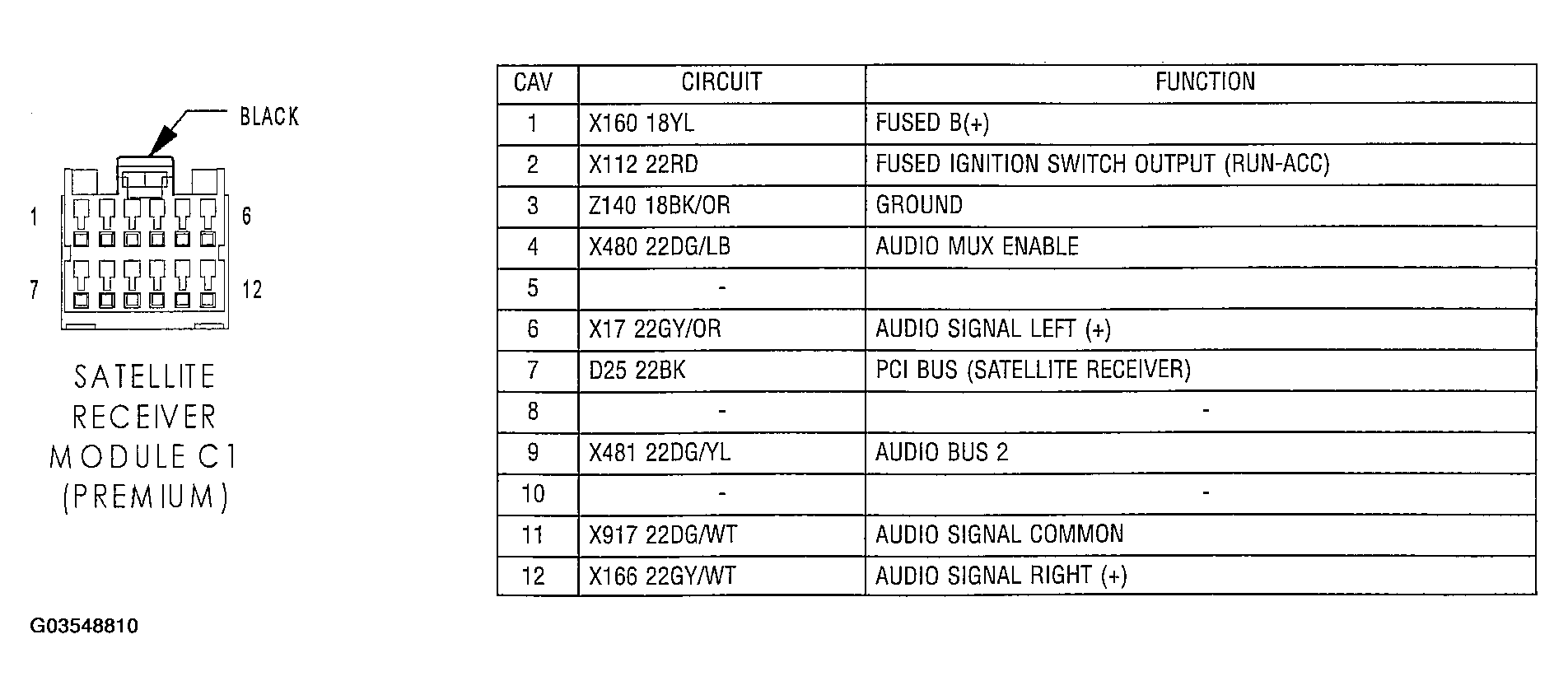

Fig 1: Satellite Receiver Module C1 (Premium)

G03548810

Courtesy of CHRYSLER GROUP, LLC
