Radio Connector End View (C1) Connector End View

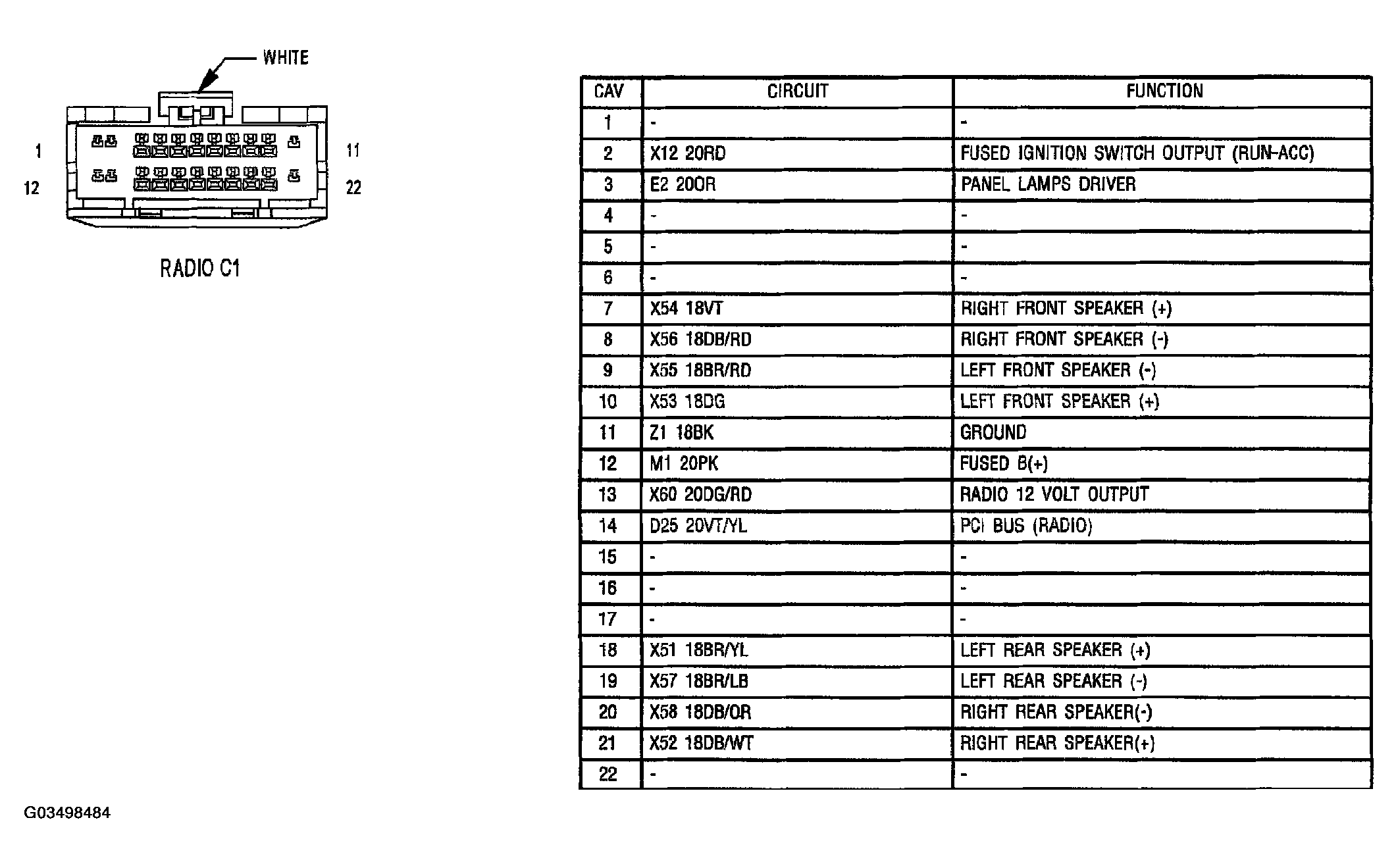

Fig 1: Radio Connector End View (C1)

G03498484

Courtesy of CHRYSLER GROUP, LLC
