Manual Temperature Control Head C2 Connector End View

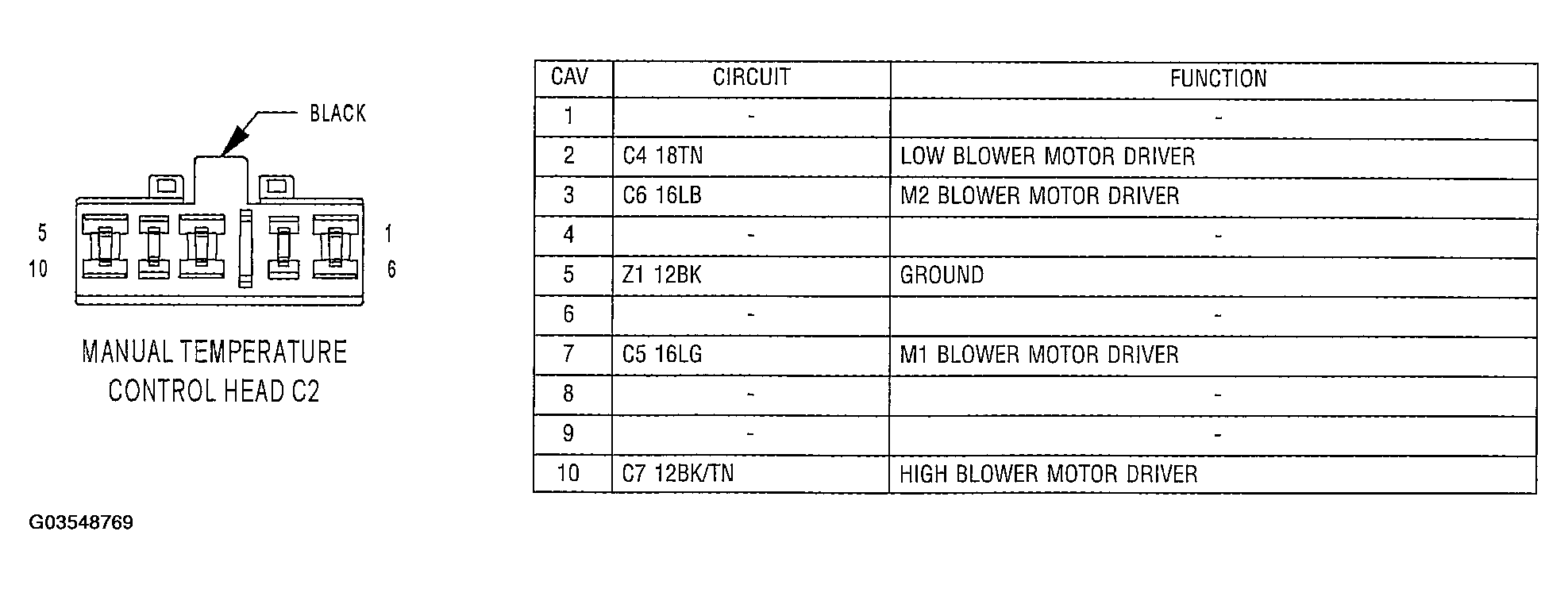

Fig 1: Manual Temperature Control Head C2

G03548769

Courtesy of CHRYSLER GROUP, LLC
