Manual Temperature Control Head C1 Connector End View

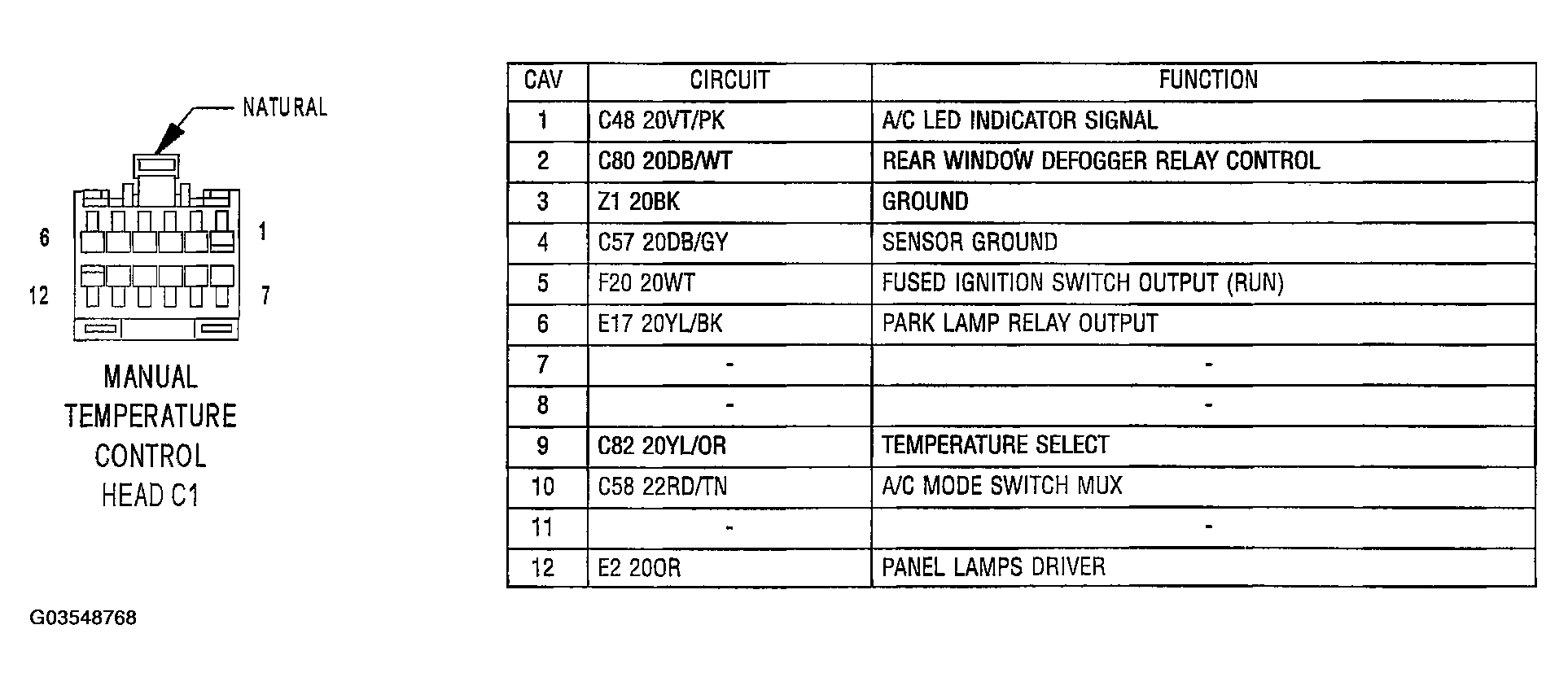

Fig 1: Manual Temperature Control Head C1

G03548768

Courtesy of CHRYSLER GROUP, LLC
